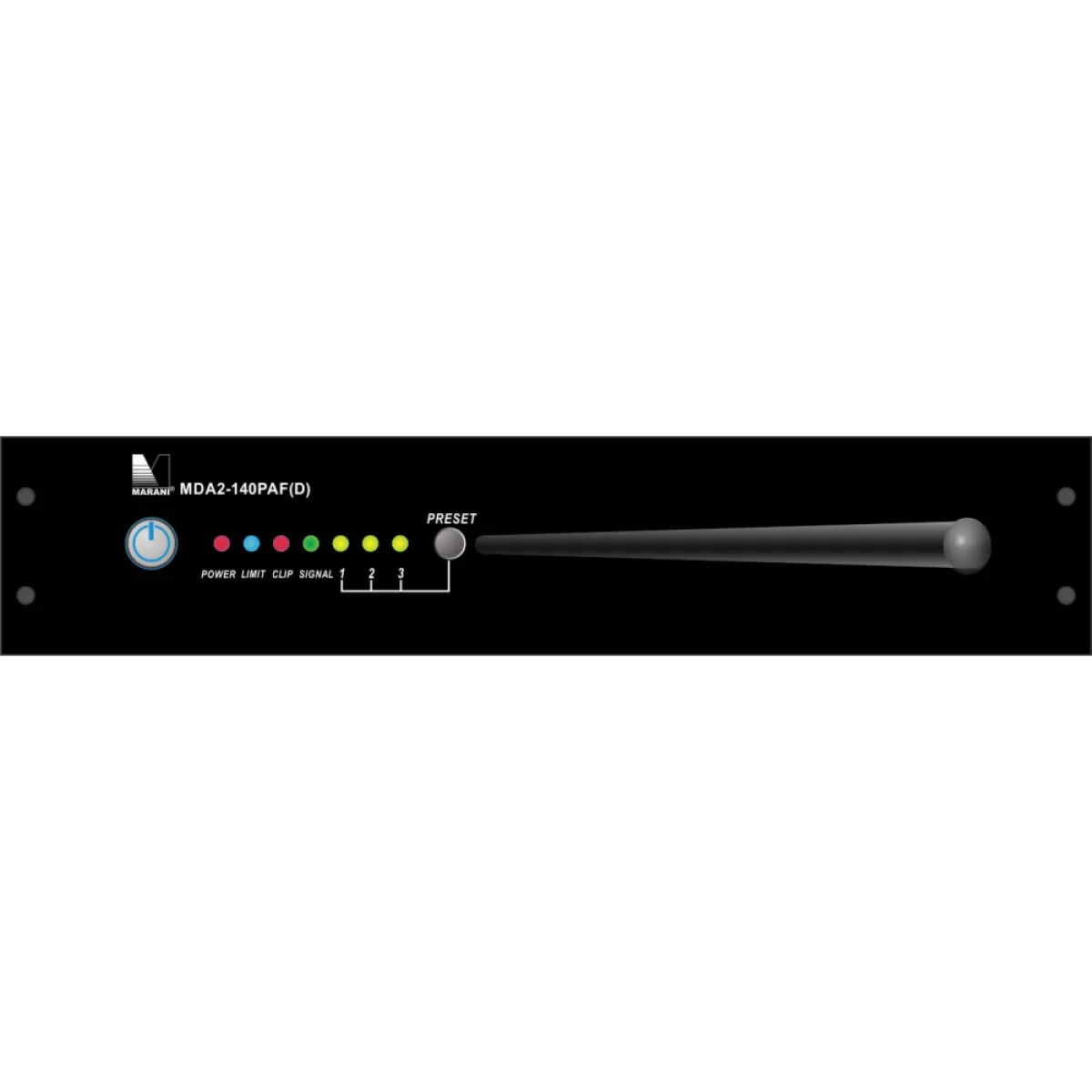

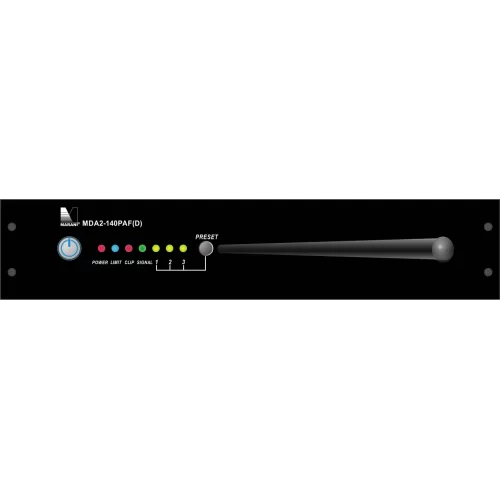

Marani MDA2-140PAF Усилитель мощности, 2х140 Вт., DSP
Звоните
Код товара:
24251Производитель:
Marani
Весь представленный на сайте товар изготовлен заявленной компанией-производителем и поставляется в Россию официальным дистрибьютором а значит обеспечен гарантийным обслуживанием от авторизованного сервисного центра.
Marani MDA2-140PAF - Усилитель мощности, 2х140 Вт., DSP
Характеристики:
| Power & Amplifier Sections | |
| Number of Channels | 2 |
| Max Output Power | 2x140W @ 4ohms; or 1x280W for the 70V/100V Direct Drive |
| Output Circuitry | Class D - full bandwith PWM modulator with ultra low distortion |
| THD+N | <0.003% |
| Signal To Noise Ratio | >105 dB (A-weighted, 20 Hz - 20 kHz, 8Ω load) |
| Frequency Response | 20 Hz - 20 kHz ± 0,15 dB (8Ω load, 1 dB below rated power) |
| Power Supply | Integrated power supply and auto voltage sensing |
| Operating Range | Universal Mains, 110-240 V |
| Consumption/Current draw and Thermal dissipation @230V | 8.8 W / 0.086 A/ 30BTU/H (Idle) 54.7 W/ 0.277 A/ 187 BTU/H (I/8 max. power@4ohm) 331 W / 1.54 A/ 1130 BTU/H (Full power) |
| Protections | Over-Current, Over/Under Voltage, Output DC and Over-Temperature |
| Maximum Input/Output Level | +12 dB |
| Audio | |
| Analog Input | 2 x electronically balanced, +12dB |
| Analog Output | 2 x electronically balanced，+12dB |
| AD & DA Converters | 24bit |
| DSP & Processing | |
| DSP Engine | MARANI® DSP |
| DSP Resolution | 24bit (data) x 24 bit (coeff.), 54 bit accumulation registers |
| 96 bit precision on intermediate processing data | |
| Input & Output Gain | -60 ~ +12 dB |
| Parametric Equalization | 5 filters per input channel; 7 filters per output channel |
| Filter Type | Bell, Hi/Lo-Shelving, HP/LP, Notch Filter |
| Filter Gain | From -15dBu up to +15dBu by 0.5dBu resolution steps |
| Center Frequency | -Selectable with a 1Hz resolution step from 20Hz up to 20kHz |
| HPF/LPF Filter | Hthreshold: -80 ~ -50dBu; Release time: 1~1000ms; Attack time: |
| Input Noise Gate | 30~1000msTypePF/LPF up to 48dB/Oct, selected as Butterworth, Bessel, Linkwitz Riley |
| Input Noise Generator | White/Pink Noise; Level: -40dBu ~ 0dBu |
| Input RMS Compressor | Threshold from -18dBu up to +12dBu; Attack time from 5ms up to 200ms; |
| Knee 0~100%; Ratio from 2:1 to 32:1;Release time from 0.1s up to 3s, with Make up -/+12dB | |
| Output Peak Limiter | Threshold from -18dBu up to +12dBu Release time 0.1 ~ 5ms; Attack time 1ms ~ 900ms; |
| Delay | -up to 164.998ms on output Channel |
| General | |
| Dimensions | 19”x 1.75”x 9” (483x44x229mm) 1RU |
| Weight, Net / Shipping | 7.71 lbs (3.5 Kg) / 8.82 lb (4 Kg) |
