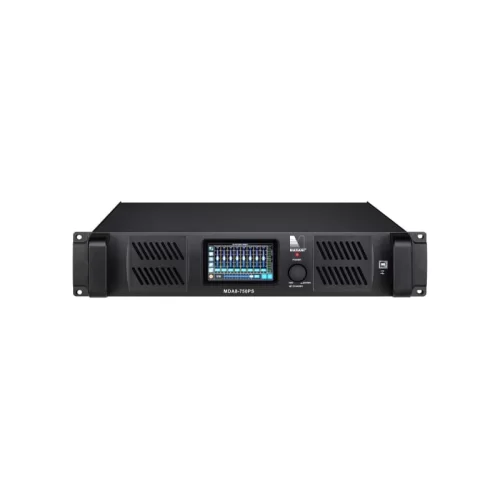

Marani MDA8-750PS Усилитель мощности, 8х750 Вт., DSP
225 600₽
Код товара:
24258Производитель:
Marani
Весь представленный на сайте товар изготовлен заявленной компанией-производителем и поставляется в Россию официальным дистрибьютором а значит обеспечен гарантийным обслуживанием от авторизованного сервисного центра.
Marani MDA8-750 PS - Усилитель мощности восьмиканальный - 8x750 Вт\4 Ом.
- Универсальное усилительное устройство,
- 8 каналов усиления класса D,
- 2 управляющих FIR процессора Marani ,
- 2 U,
- 14 кг
Power & Amplifier section
| Number of Channels | 8 |
| Output Power | 8 x 750W @ 4ohm(4x1500W@8ohm) or 70V/100V Direct Drive |
| Output Circuitry | Class D Amp Module- full bandwith PWM modulator with ultra low distortion |
| THD + N | 1% @ maximum output power |
| Frequency Response | >108 dB (A-weighted, AES-17 filter) |
| Power Supply | independent Switch mode Power Supply |
| Operating Range | 90 - 245 VAC (50/60Hz) |
| Protections | Thermal, Short-circuit/Overload, Clip Limiter, Permanent Signal Limiter, High Frequency |
| Maximum Input Level | +13dBu |
| Maximum Output Level | +6dBu |
| Analog Input | 4 x XLR electronically balanced, +13dBu |
| Frequency Response (DSP) | 20 Hz - 20 KHz; -0.5dBu at 20 Hz and 20 kHz |
DSP & Processing
| DSP Engines | 2 x MARANI® M716 DSPs |
| DSP Resolution | 24 bit (data) x 32bit (coeff.), 54 bit accumulation registers 96 bit precision on intermediate processing data |
| Parametric Equalization | 12 band parametric equatlization per input 4 band parametric equalization per output filter gain range from -15 to +15 dBu |
| FIR for Phase Correction | Asymmetrical 512 Taps, allowing also FIR latency Adjustment/reduction. Coefficients can be generated by Pc Sw embedded Wizard tool, imported by external third party applications,and exported to third parties applications |
| Filter Type | Bell, Shelving, HP/LP, Band Pass, Notch Filter, All Pass |
| Filter Gain | From -15dBu up to +15dBu by 0.5dBu resolution steps |
| Center Frequency | Sortable with a 0.5dBu resolution step from 20Hz up to 20kHz |
| Filter Q/BW | Bell: Q from 0.4 up to 128, steps: 100 Shelving: Q from 0.1 up to 5.1, steps: 100 Bandpass/Notch: Q from 4 up to 104, steps: 100 |
| Input&Output Gain | -12dB ~ +12dB, resolution: 0.1dBu |
| IIR Crossover section HPF/LPF | Butterworth 6/12/18/24/36/48dB per octave; Bessel 12/24dB per octave; Linkwitz-Riley 12/24/36/48dB per octave. |
| FIR Crossover section HPF/LPF | Hp/Lp/Bp filters, Taps from 256 up to 512, Attenuation up to -120dB, Window type as Rect / Sinc / Keiser / Hanning / Hamming / Blackman / Nuttal / Sine |
| Noise Generator | Type: White/Pink Noise; Level: -40dBu ~ 0dBu |
| Input RMS Compressor | Threshold from -16dBu up to +14dBu; Ratio: 2:1~32:1; Knee: 0~100%; Attack time from 5ms up to 200ms; Release time from 0.1sec up to 3sec |
| Output Peak Limiter | Threshold from -16dBu up to +14dBu; Attack time from 1ms up to 900ms; Release time from 0.1sec up to 5sec |
| Head room on Internal Overflow Process | 12dB Headroom |
| Delay | Each input has up to 500.998ms delay, each output has up to 340.998ms delay |
| Ground Noise | -86 dBu |
General
| Device Presets | 50 |
| Front Panel | LCD display with Touchscreen Function 1 x Blue LED (Power) 1 x Rotary encoder push button switches USB type B connector |

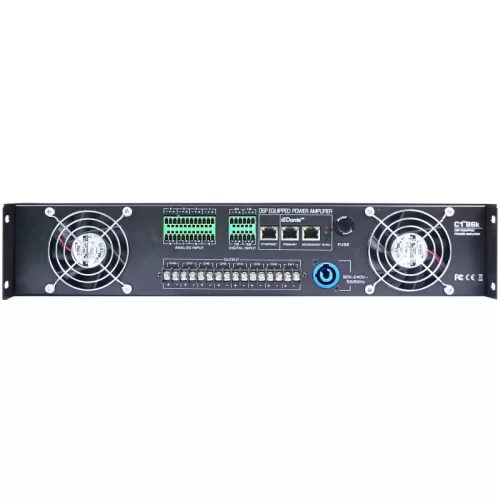

| Rear Panel | 2 x 12 pin Phoenix connector (Analog Input) 2 x 6 pin Phoenix connector (Digital Input) 8 x 2 pin Phoenix connector (Output) 2 x Ethernet 10/100 TCP-IP (Dante™ Audio Signal: optional) 1 x Ethernet 10/100 TCP-IP (ETHERNET PC Control) 1 x Locking PowerCON® 20A: AC Power Cord (Blue) 1 x 80*80 mm 24V FAN |
| Dimensions | 482X314.5X88mm |
| Weight, Net / Shipping | 14.50 Kg / 16.00 Kg |
Характеристики
Количество каналов
8
Мощность на канал (100 В), Вт
750
Мощность на канал (4 Ом), Вт
750
