Marani MDA3-100M Усилитель мощности, 2х150+350 Вт., DSP

Marani MDA3-100M - Усилитель мощности, 2х150+350 Вт., DSP

Power & Amplifier section

• Number of Channels 3 Powered output: L/R/S
• Max Output Power @ 8 ohms 2 x 150W@4ohm + 1 x 280W (Bridge) @8 ohm
• Output Circuitry Class D Amplifier Module
• Power Supply Independent MARANI® SMPS
• THD + N L/R: 1%; Sub:0.26%
• S/N Ratio L/R: 100dB; Sub: 98dB
• Consumption/Current draw and Thermal disspation @230V Sleep Mode: 4.8W/0.078A.
• Idle: 23.8W/0.175A
• Standby Mode:4.8W/0.078A
• Protections Over-Current, Over/Under Voltage, Output DC and Over-Temperature
• Analog Input 2 x RCA A/B Unbalanced
• Maximum Input/Output Level +12dBDSP & Processing
• DSP Engine 1 x MARANI® DSP
• DSP Resolution 24 bit (data) x 24 bit (coeff.), 54 bit accumulation registers
• 96 bit precision on intermediate processing data
• Input Type Selection Analog Inputs
• Noise Gate Threshold from -90dBV up to -60dBV, 5dBV Steps
• Attack time from 1ms up to 1000ms;
• Release time from 10ms up to 1000ms
• Input 12-band PEQ
• Output 5-band PEQ Peaker, Q from 0.4 up to 128, Gain +/-12dBu, Center Freq from 20 to 20kHz
• Variable Q Hi/Lo Shelving, Q from 0.1 up to 5.1, Gain +/-13dBV, Center Freq from 20 to 20kHz
• Variable Q Hi/Lo Pass, Q from 0.1 up to 5.1, Cutting Freq from 20 to 20kHz
• Notch, Q from 4 up to 104, Center Freq from 20 to 20kHz
• Input RMS Compressor Threshold from -18dBV up to 12dBV; Make Up from 0 to +12dB
• Knee 0~100%; Ratio from 2:1 to 32:1?
• Release time from 100ms up to 3s (100ms resolution); Attack time from 5ms up to 200ms
• Output HPF/LPF section Butterworth 6/12/18/24dB per octave,
• Bessel, Linkwitz-Riley 12/24dB per octave,
• Filter frequency resolution 1Hz
• Output Peak Limiter Threshold: -18dBV ~ +12dBV, Attack time: 1ms ~ 900ms, Release time: 100ms ~ 5sec
• Delay Each input channel’s selectable delay is up to 80.998ms, each output channel’s up to 50.998msGeneral

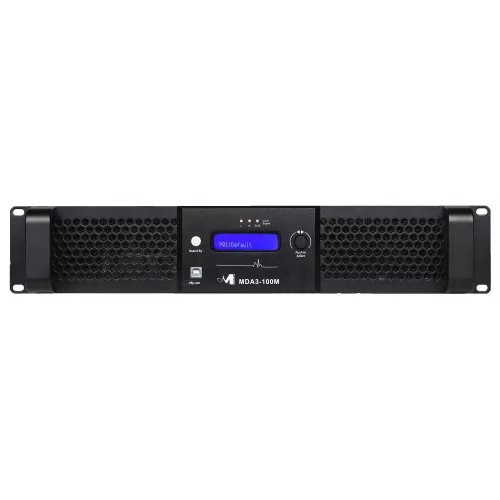

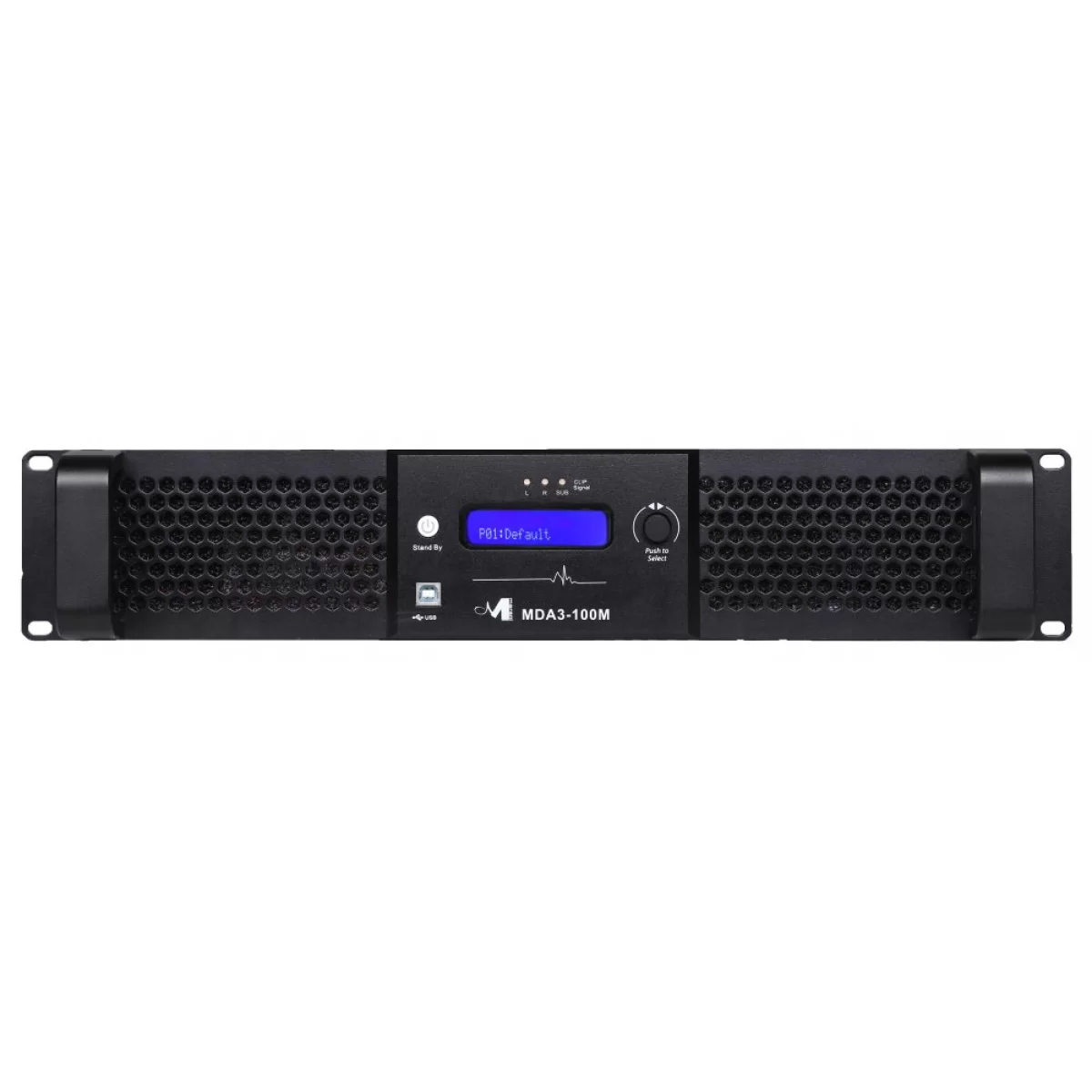

• Front Panel 1 x rotary encoder, to load or select presets
• 1 x Type B USB
• 1 x Standby button
• 1 x 2*16 LCD screen
• 1 x Power Switch
• 3 x Green-Red LED, indicating distortion and signal for each channel: red indicates distortion and clip , while green signal

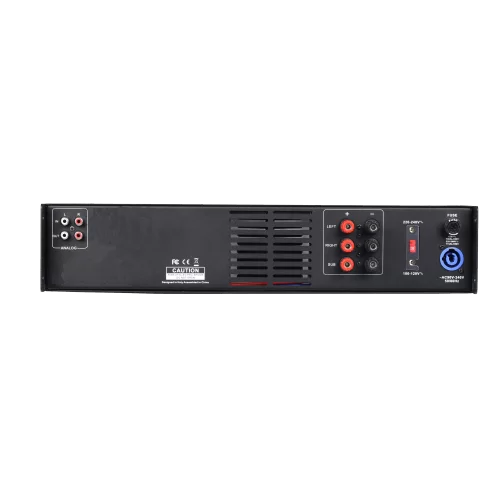

• Rear Panel 4 x RCA Connectors (Analog Input & Output)
• 6 x Binding Post (Amplifier Output)
• 1 x 110V/230V Voltage Switch
• 1 x Locking PowerCON® 20A: AC Power Cord (Blue)
• Dimensions 482 x 247 x 88 mm
• Weight, Net / Shipping 5.20 kg/ 6.00 kg
