Ashly nX754 Усилитель мощности, 4х75 Вт

208 500₽

Наличие и цену товара уточняйте у менеджера

0 отзывов

Код товара:

19237

Производитель:

Ashly

Весь представленный на сайте товар изготовлен заявленной компанией-производителем и поставляется в Россию официальным дистрибьютором а значит обеспечен гарантийным обслуживанием от авторизованного сервисного центра.

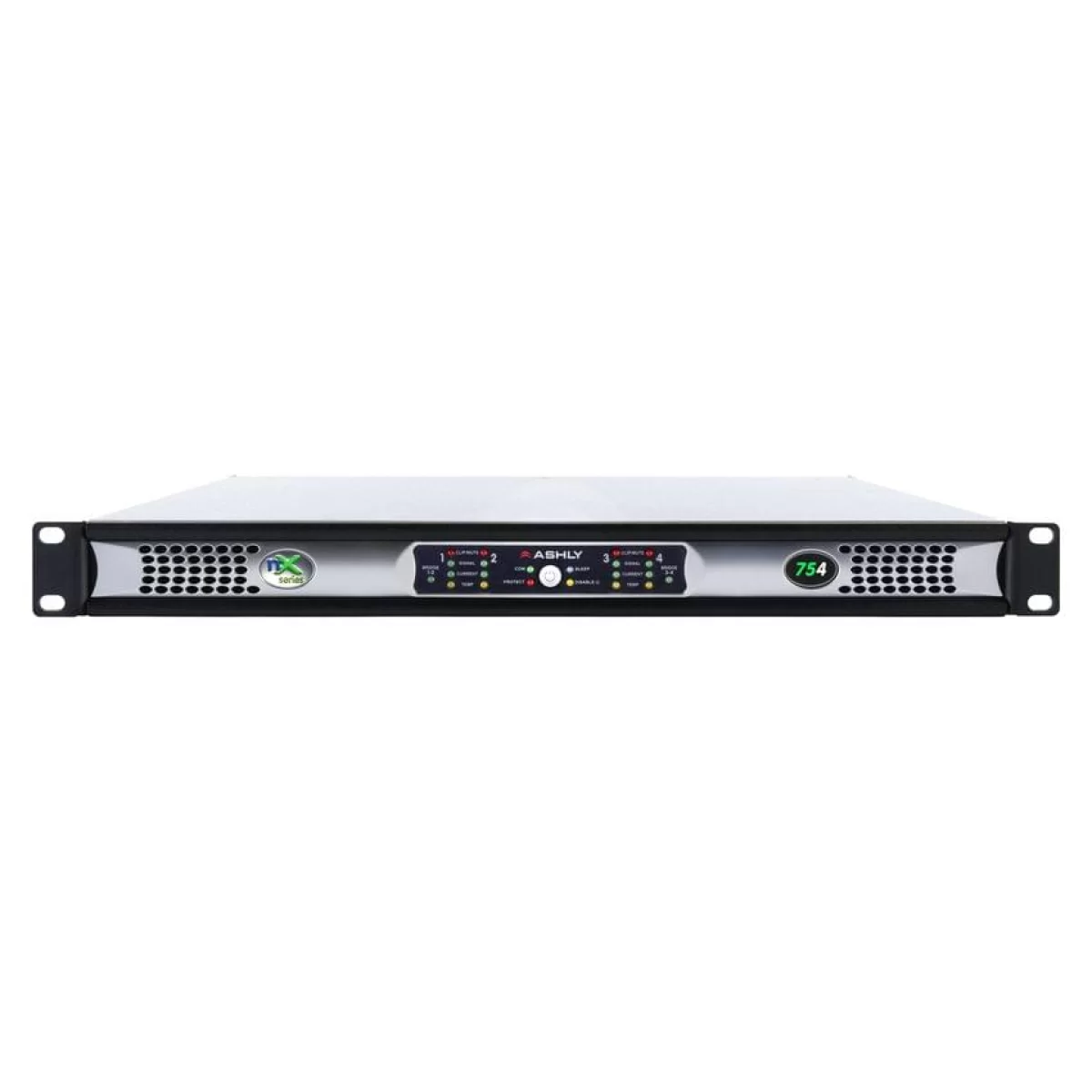

Ashly nX754 - Усилитель мощности, 4х75 Вт.

Характеристики:

Number of Channels	4
Voltage Gain	Selectable at 26, 32, or 38 dB, or 1.4 V
Damping Factor	>250 (8 Ohms load <1 kHz)
Filter	Input High Pass Filter: 80 Hz second-order
Distortion	SMPTE (Typical): <0.5% THD-N (Typical): <0.5% (8 Ohms, 10 dB below rated power, 20 Hz to 20 kHz)
Channel Separation	-75 dB (dB from full output, 1 kHz)
Signal-to-noise	>96 dB (un-weighted 20 Hz to 20 kHz, Gain @ 26 dB)
Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Input Impedance	10 kOhms
Balanced Input	Euroblock 3.5 mm
Maximum Input Level	+21 dBu
Speaker Output	Euroblock 7.62 mm
Level Control	Remote DC Level Control: Euroblock 3.5 mm - Gnd, CV, V+ per input
Attenuation	Per Channel: Rear panel, fully off= mute
Front Panel LED Indicators	White LED: Power Switch: On, off, flashing (standby mode) Red LED: Protect: On (fault condition or shut down), Off Clip / Mute (Per Channel): Clip @ 1 dB below rated output / mute Blue LED: Sleep Mode: On (when the amplifier is asleep from audio inactivity) Yellow LED: Disable: On (when the power switch & attenuators are disabled) Temperature (Per Channel): On dim at 90% maximum operating temperature, full bright + protect at 100% Green LED: Signal (Per Channel): -18 dB, below rated output Bridge (Per Channel): Pair, On, off Current (Per Channel): Brightness is proportional to output current
Protection Circuits	Inrush current limitation, temperature monitoring, output over-power protection, and mains fuses
Cooling	Continuously variable temperature controlled fan
Nominal Voltage	Input: 120 to 240 VAC @ 50/60 Hz
Operating Range	70 to 270 VAC @ 50/60 Hz
Power-Up Action	Minimum Power-Up: 70 VAC @ 50/60 Hz
Power Supply Type	SMPS with active PFC (Power Factor Correction)
AC Mains Power Cord	Connector: Detachable NEMA 5-15 for USA
Maximum Output Power	Low Impedance Output Mode (All Channels Driven at Rated Load): 2, 4, & 8 Ohms: 75 W
Low Impedance	Low Impedance Output in Bridge Mode (All Channels Driven at Rated Load): 4, & 8 Ohms: 150 W
Voltage Output	Constant Voltage Output (All Channels Driven at Rated Load): 25, 70, & 100 V (Per Channel): 75 W
Power Draw	Total AC Mains Power Draw (Typical Input): Sleep Mode: <1 W Standby Mode: 25 W Idle (No Signal): 53 W Typical Input (1/8 Max Power @ 2 Ohms): 142 W
Current Draw	For 120 VAC (Typical Input, Total for all Channels): Sleep Mode: 94 mA Standby Mode: 0.27 A Idle (No Signal): 0.5 A 1/8 Max Power @ 2 Ohms: 1.24 A For 240 VAC (Typical Input, Total for all Channels): Sleep Mode: 47 mA Standby Mode: 0.135 A Idle (No Signal): 0.25 A 1/8 Max Power @ 2 Ohms: 0.62 A
Thermal Dissipation	Typical Input (Total for all Channels): Sleep Mode: 2.14 BTU/hr Standby Mode: 86.4 BTU/hr Idle (No signal): 180 BTU/hr Typical (1/8 Max Power @ 2 Ohms): 355 BTU/hr
Environmental Conditions	32 to 120°F (0 to 49°C), non-condensing
Dimensions (W x H x D)	19.00 x 1.75 x 14.54" (483 x 45 x 369 mm)
Weight	12.1 lb (5.5 kg)
