Ashly nX1504 Усилитель мощности, 4х150 Вт
220 300₽
Код товара:
19239Производитель:
Ashly
Весь представленный на сайте товар изготовлен заявленной компанией-производителем и поставляется в Россию официальным дистрибьютором а значит обеспечен гарантийным обслуживанием от авторизованного сервисного центра.

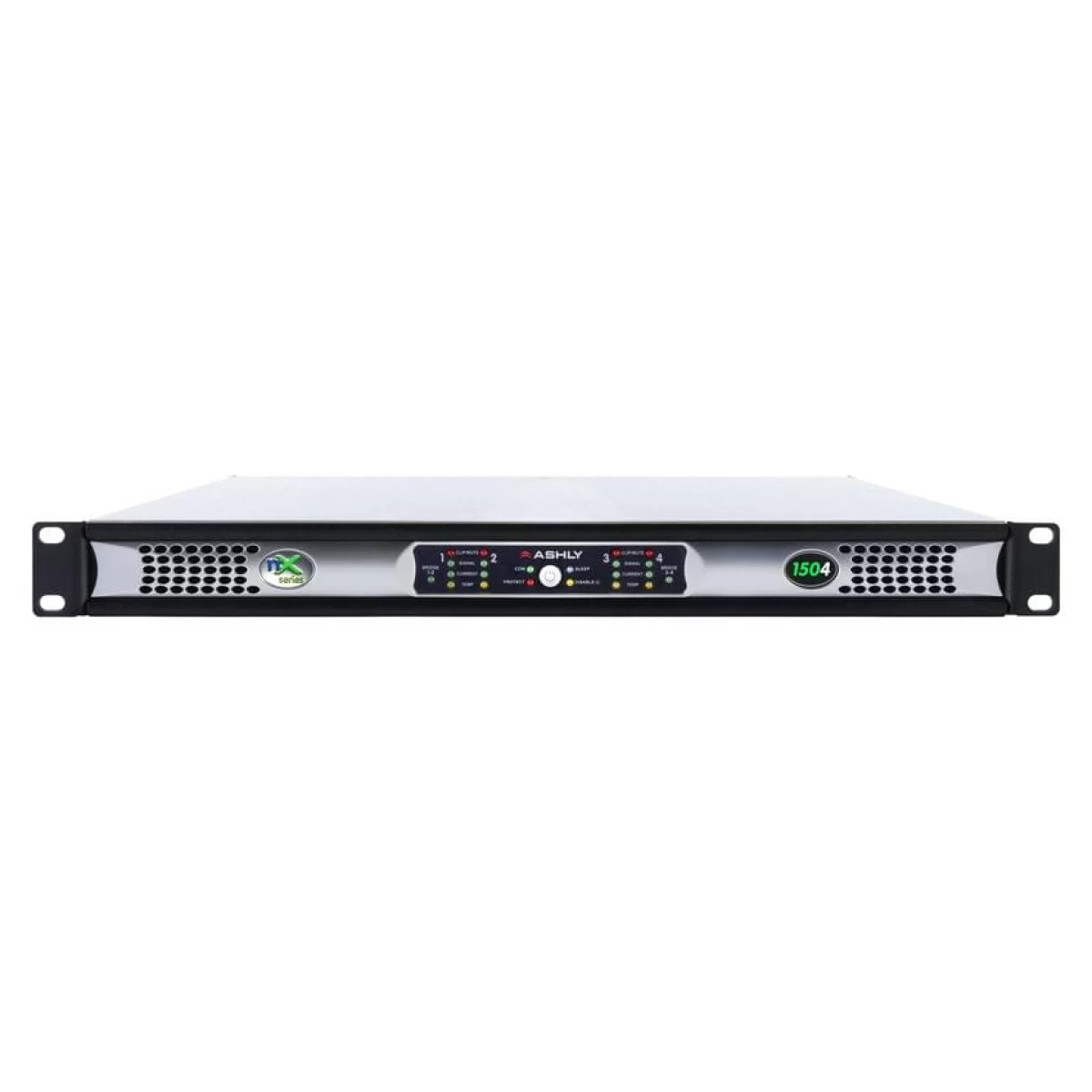

Ashly nX1504 - Усилитель мощности, 4х150 Вт.
Характеристики:
| Number of Channels | 4 |
| Voltage Gain | Selectable at 26, 32, or 38 dB, or 1.4 V |
| Damping Factor | >250 (8 Ohms load <1 kHz) |
| Filter | Input High Pass Filter: 80 Hz second-order |
| Distortion | SMPTE (Typical): <0.5% THD-N (Typical): <0.5% (8 Ohms, 10 dB below rated power, 20 Hz to 20 kHz) |
| Channel Separation | -75 dB (dB from full output, 1 kHz) |
| Signal-to-noise | >99 dB (un-weighted 20 Hz to 20 kHz, Gain @ 26 dB) |
| Frequency Response | 20 Hz to 20 kHz, ±0.05 dB |
| Input Impedance | 10 kOhms |
| Balanced Input | Euroblock 3.5 mm |
| Maximum Input Level | +21 dBu |
| Speaker Output | Euroblock 7.62 mm |
| Level Control | Remote DC Level Control: Euroblock 3.5 mm - Gnd, CV, V+ per input |
| Attenuation | Per Channel: Rear panel, fully off= mute |
| Front Panel LED Indicators | White LED: Power Switch: On, off, flashing (standby mode) Red LED: Protect: On (fault condition or shut down), Off Clip / Mute (Per Channel): Clip @ 1 dB below rated output / mute Blue LED: Sleep Mode: On (when the amplifier is asleep from audio inactivity) Yellow LED: Disable: On (when the power switch & attenuators are disabled) Temperature (Per Channel): On dim at 90% maximum operating temperature, full bright + protect at 100% Green LED: Signal (Per Channel): -18 dB, below rated output Bridge (Per Channel): Pair, On, off Current (Per Channel): Brightness is proportional to output current |
| Protection Circuits | Inrush current limitation, temperature monitoring, output over-power protection, and mains fuses |
| Cooling | Continuously variable temperature controlled fan |
| Nominal Voltage | Input: 120 to 240 VAC @ 50/60 Hz |
| Operating Range | 70 to 270 VAC @ 50/60 Hz |
| Power-Up Action | Minimum Power-Up: 70 VAC @ 50/60 Hz |
| Power Supply Type | SMPS with active PFC (Power Factor Correction) |
| AC Mains Power Cord | Connector: Detachable NEMA 5-15 for USA |
| Maximum Output Power | Low Impedance Output Mode (All Channels Driven at Rated Load): 2, 4, & 8 Ohms: 150 W |
| Low Impedance | Low Impedance Output in Bridge Mode (All Channels Driven at Rated Load): 4, & 8 Ohms: 300 W |
| Voltage Output | Constant Voltage Output (All Channels Driven at Rated Load): 25, 70, & 100 V (Per Channel): 150 W |
| Power Draw | Total AC Mains Power Draw (Typical Input): Sleep Mode: <1 W Standby Mode: 25 W Idle (No Signal): 53 W Typical Input (1/8 Max Power @ 2 Ohms): 230 W |
| Current Draw | For 120 VAC (Typical Input, Total for all Channels): Sleep Mode: 94 mA Standby Mode: 0.27 A Idle (No Signal): 0.5 A 1/8 Max Power @ 2 Ohms: 2.2 A For 240 VAC (Typical Input, Total for all Channels): Sleep Mode: 47 mA Standby Mode: 0.135 A Idle (No Signal): 0.25 A 1/8 Max Power @ 2 Ohms: 1.1 A |
| Thermal Dissipation | Typical Input (Total for all Channels): Sleep Mode: 2.14 BTU/hr Standby Mode: 86.4 BTU/hr Idle (No signal): 180 BTU/hr Typical (1/8 Max Power @ 2 Ohms): 505 BTU/hr |
| Environmental Conditions | 32 to 120°F (0 to 49°C), non-condensing |
| Dimensions (W x H x D) | 19.00 x 1.75 x 14.54" (483 x 45 x 369 mm) |
| Weight | 12.1 lb (5.5 kg) |
