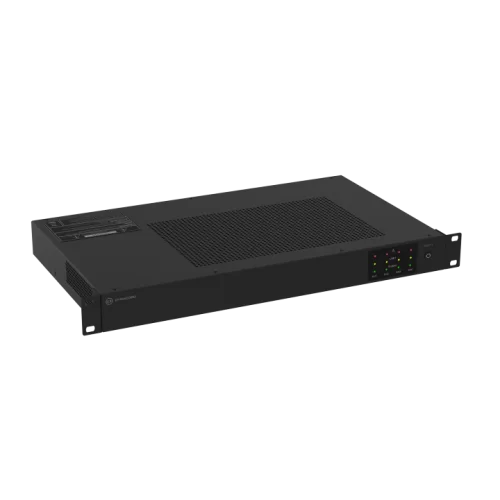

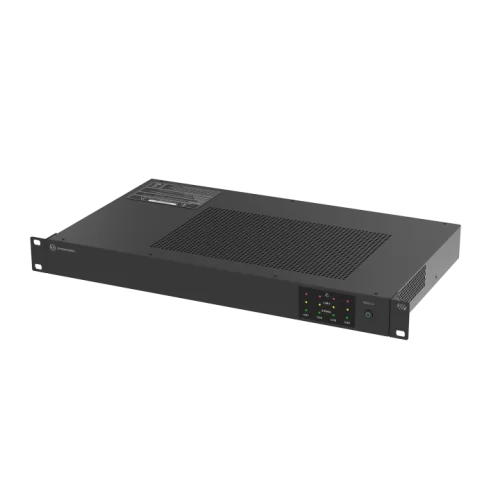

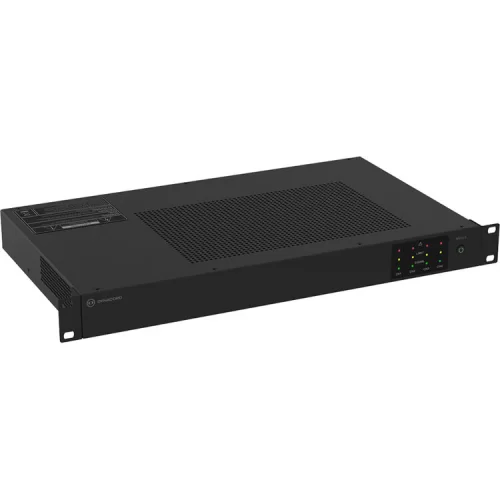

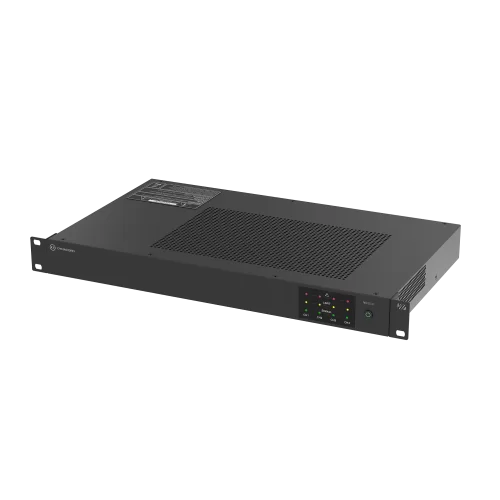

Dynacord V600:4 Трансляционный усилитель, 4x150 Вт.

Dynacord V600:4 - Трансляционный усилитель

Характеристики:

• Electrical
  • Output Power (4Ω, 8Ω, 70V, 100V)
    • Rated output power[1]: 4 x 150W
    • Maximum output power per channel (power sharing)[1] at minimum impedance: 500W, 600W, 500W, 600W
    • Total rated output power[1]: 600W
    • Number of channels: 4
    • Output voltage rated output power: 24.5 VRMS, 34.6 VRMS, 70.7 VRMS, 100 VRMS
    • Maximum output voltage: 40.0 VRMS, 56.0 VRMS, 70.7 VRMS, 100 VRMS
    • Rated impedance per channel: 4Ω, 8Ω, 33.3Ω, 66.7Ω
    • Minimum impedance per channel: 2.6Ω, 4Ω, 10Ω, 16.7Ω
  • Amplifier (4Ω, 8Ω, 70V, 100V)
    • Nominal Gain (+6 dBu input sensitivity, LEVEL 0 dB): 24.0 dB, 27.0 dB, 33.2 dB, 36.2 dB
    • Maximum Gain (0 dBu input sensitivity, LEVEL +6 dB): 30.0 dB, 33.0 dB, 39.2 dB, 42.2 dB
    • THD+N (1/8 rated output power, 1 kHz): < 0.1%
    • Crosstalk (ref. 1 kHz, 12 dB below maximum): < -70 dB, < -75 dB, < -90 dB, < -95 dB
    • Frequency Response[2] (ref. 1 kHz, analog in to speaker out, -3 dB)
      • HP: 30/100/150 Hz to 20 kHz LP: 30 Hz to 150 Hz
      • HP: 50/100/150 Hz to 20 kHz LP: 50 Hz to 150 Hz
    • Damping Factor (30/50 Hz to 1 kHz, ref. to rated impedance): > 80, > 160, > 500, > 1000
    • Output Stage Topology: Class D, fixed frequency
    • Signal to Noise Ratio (A weighted, ref. to rated output power, LEVEL 0 dB): > 98 dB, > 100 dB, > 101 dB, > 103 dB
    • Output Noise (A-weighted, LEVEL 0 dB): < -68 dBu, < -67 dBu, < -62 dBu, < -61 dBu

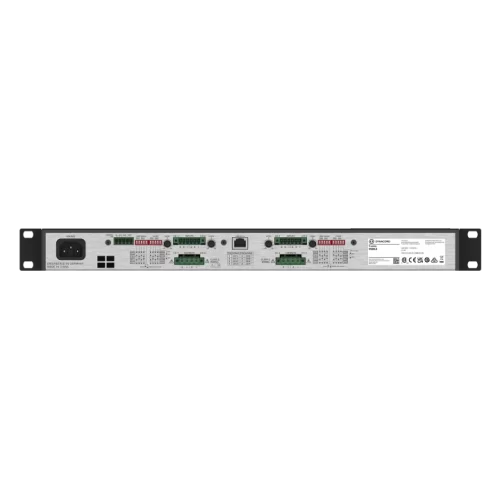

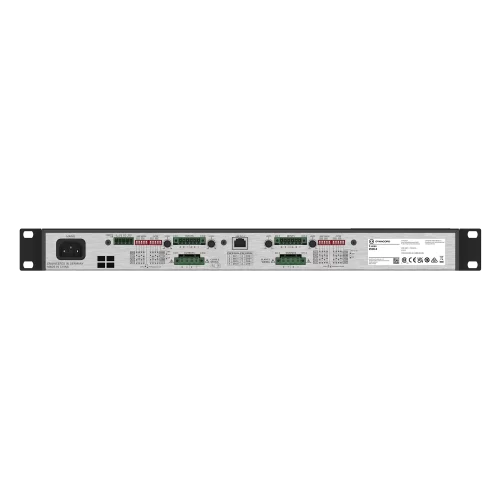

• Connectivity
  • Analog Audio Input
    • Type: 2 x 6 pin Euroblock, 3.81 mm, male, parallel 1x RJ45 AMP LINK
    • Maximum input level (LEVEL 0 dB): +18 dBu
    • Input impedance, active balanced: 20 kΩ
    • Mains Input: IEC C14
    • Loudspeaker output: 2 x 4-pin Euroblock, 5.08 mm, female
  • Control Port
    • Type 1 x 5 pin Euroblock, 3.81 mm, male
    • REMOTE ON Remote On / Standby contact (overrides power button on front panel)
    • READY/FAULT Galvanic isolated relay, max. 30 VDC / 500 mADC
• Signal processing InputRouting, HPF 24 dB/ Oct., LPF 24 dB/Oct., Flat, Peak Limiter
• Power requirements100V to 240V, 50 Hz to 60 Hz AC
• Power consumption
  • Consumption at 1/8 rated output power 115W
  • Idle mode (ecoRAIL with no input signal) < 20W
  • Standby mode (APD active) < 1W
• Power supply topologySwitching power supply with power factor correction
• ProtectionsAudio limiters, high temperature, DC, HF, short circuit, back EMF, peak current limiters, inrush current limiters, mains over/under voltage protection

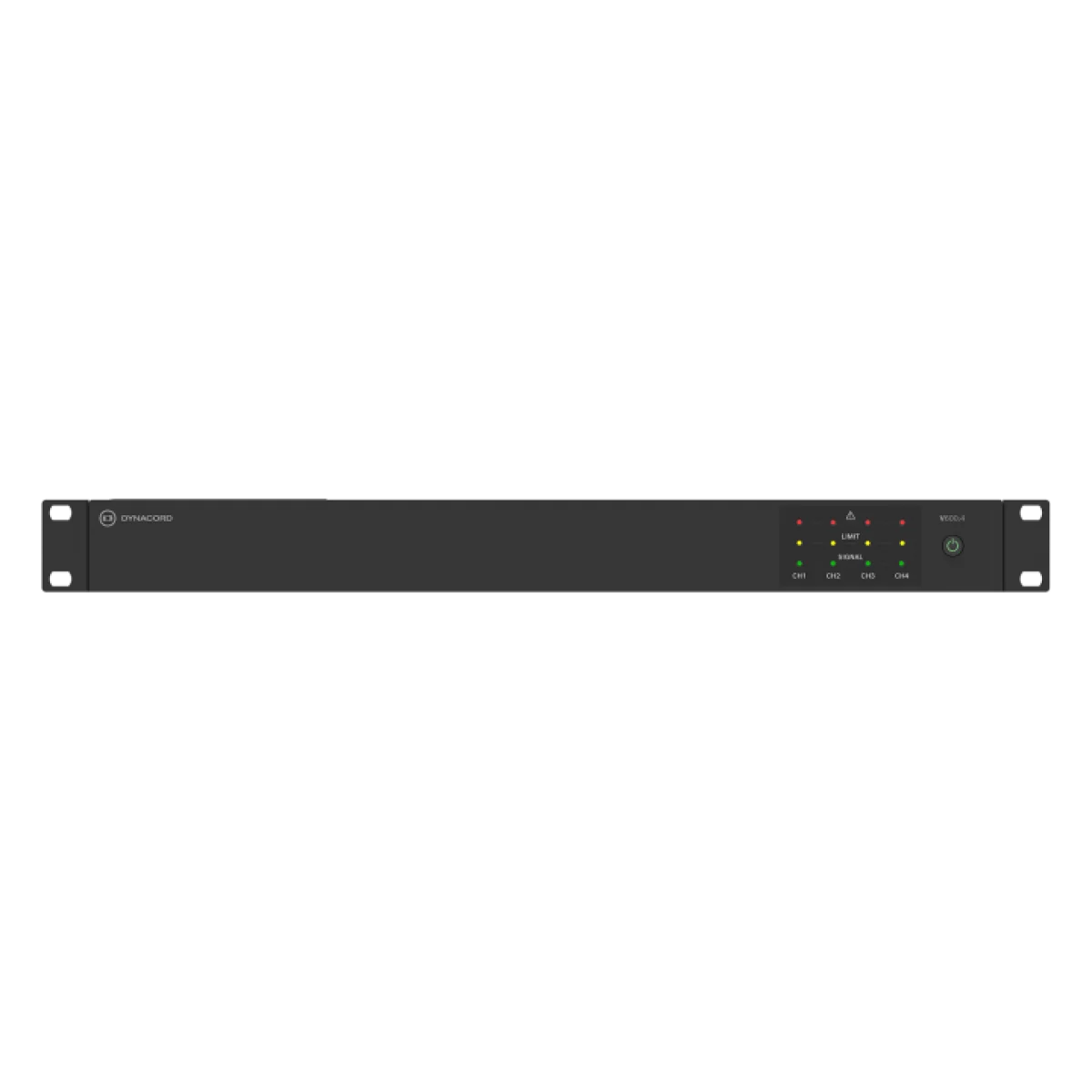

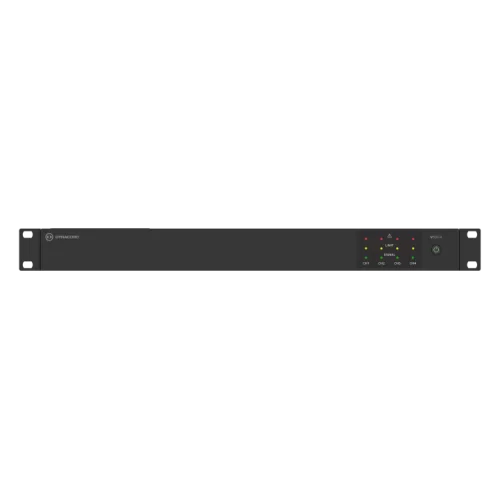

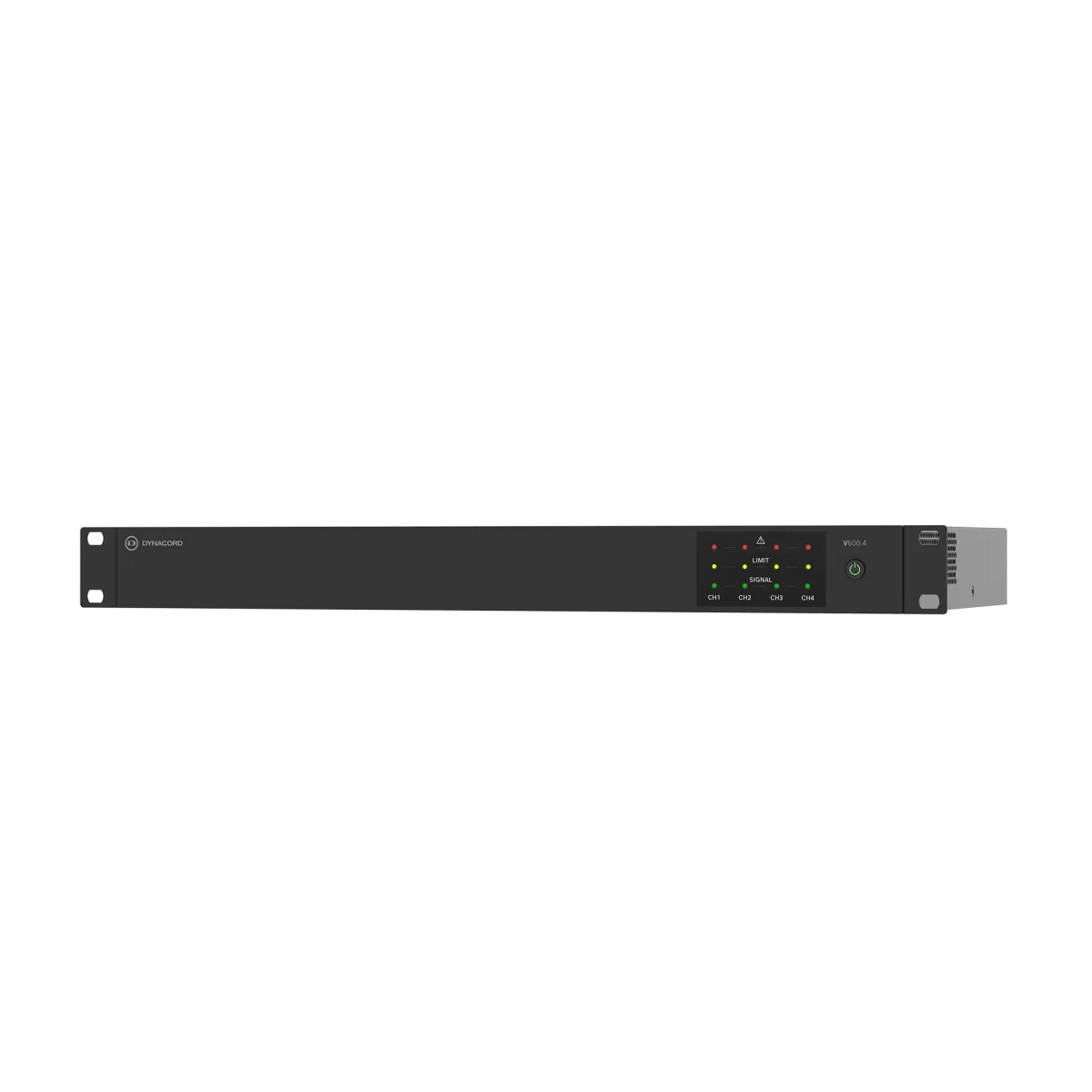

• Front statusLEDs Signal, limit, fault LEDs per channel; power LED
• Environmental
  • Cooling concept: Convection cooling in tabletop application and rack application with spacing between units. Forced cooling (side to rear) in rack application without spacing between units and in extreme thermal conditions.
  • Ambient temperature limits: -5°C to +45°C (+23 °F to +113 °F)
  • Altitude (operating): -500 m to +5000 m (-1614 ft to 16404 ft)
• Mechanical
  • Enclosure
    • IEC Protection Class: Class I (grounded)
    • Dimensions (HxWxD): With 19” mounting brackets 44.2 x 483 x 269.5 mm (1.74 x 19.2 x 10.6 in)
    • Weight 3.6 kg (7.9 lb)
