Marani DGP215 2-канальный параметрический эквалайзер

Marani DGP215 2-канальный параметрический эквалайзер

Name: Marani DGP215 2-канальный параметрический эквалайзер
Brand: Marani
SKU: Marani DGP215
Availability: InStock

Звоните

0 отзывов

Код товара:

24274

Производитель:

Marani

Весь представленный на сайте товар изготовлен заявленной компанией-производителем и поставляется в Россию официальным дистрибьютором а значит обеспечен гарантийным обслуживанием от авторизованного сервисного центра.

Marani DGP215 - 2-канальный параметрический эквалайзер.

Audio

Analog Input	2 x XLR, 2 x TRS electronically balanced
Analog Output	2 x XLR, 2 x TRS electronically balanced
Input Max Level	9 dBu
Output Max Level	9 dBu
Minimun Load	150 ohm
THD+N	0.001% at 1kHz 0dBu
S/N	>96dBA
Frequency Response	20Hz – 20kHz; -0.5dBu at 20Hz and 20kHz

DSP & Processing

DSP Engine	MARANI® DSP, 24bit (data) x 96 bit (coeff.)
DSP Resolution	24×32 bit for filtering process 96 bits resolution on intermediate computation results
Parametric Equalization	15 filters per channel
Filter Gain	From -15dBu up to +15dBu by 0.5dBu resolution steps
Center Frequency	Selectable with a 1/24th of octave resolution step from 20Hz up to 20kHz
Filter Q/BW	Q from 0.4 up to 128
Graphic Equalizer	15 bands per channel
Crossover Section HPF/LPF	Butterworth 6/12 Filter resolution 1/24th of octave
Noise Gate	Threshold from -90dBu up to -60dBu Release time from 1ms up to 80ms (5ms resolution up to 20ms, 10ms resolution up to 40ms and 20ms resolution up to 80ms) Attack time from 0.5 sec up to 1 sec (0.1sec resolution)
Delay	300,987 ms 21us increment/decrement steps per channel

General

Device Presets	16 Factoty + 16 User

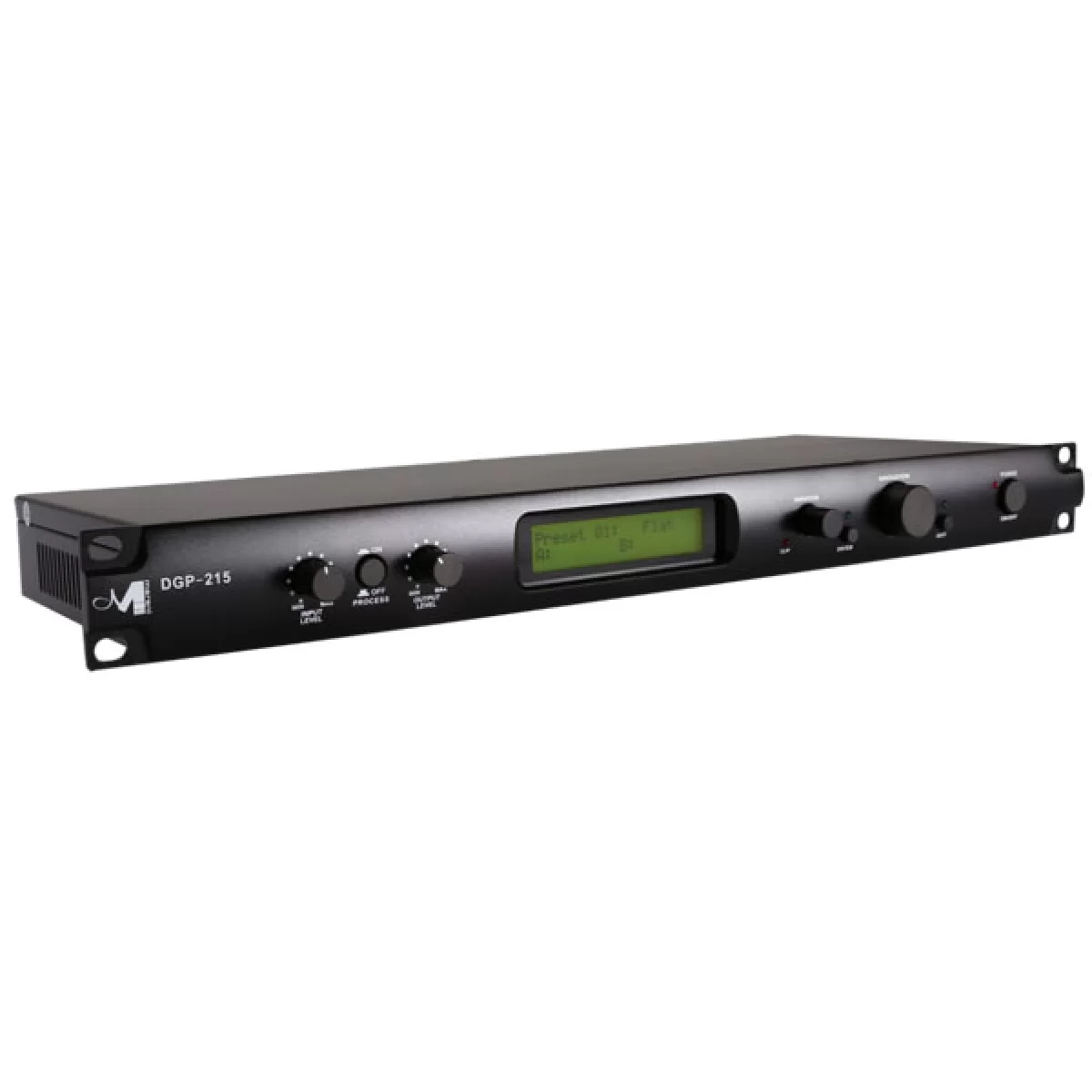

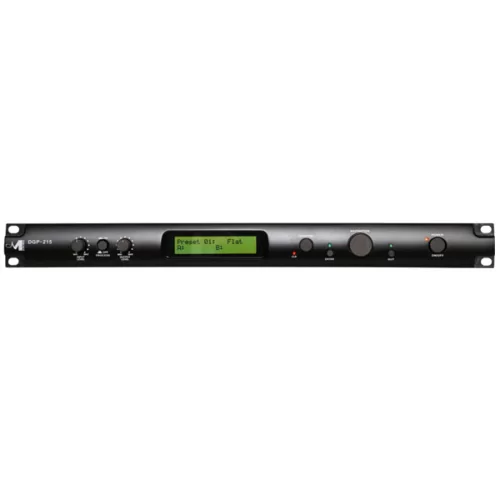

Front Panel	2x20 character LCD display with blue LED backlight Input Level POT Output Level POT 3 x Switch button (Process ON/OFF, ENTER, QUIT, Power ON/OFF) VARIATON Rotary encoder NAVIGATION Rotary encoder 2 x Red LED (CLIP, Power on) 2 x Green LED (ENTER, QUIT)

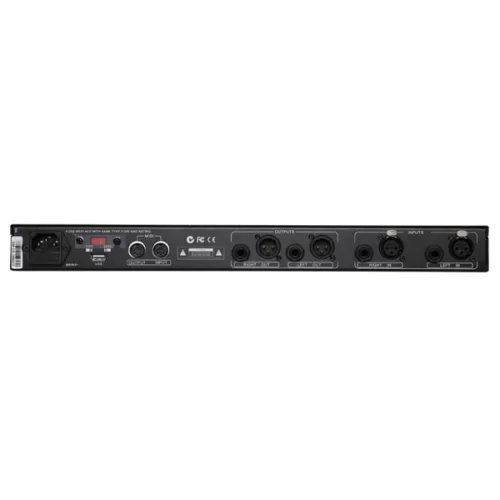

Rear Panel	2 x XLR female connector (Input) 2 x XLR male connector (Output) 2 x 1/4" TRS line jack female connector (Input) 2 x 1/4" TRS line jack female connector (Output) 1 x MIDI IN port 1 x MIDI OUT port USB type A connector 1 x Voltage setting toggle switch (110/220V) IEC C13 16A connector;
Main AC	110-220VAC 50/60Hz (Switchable); 40W
Dimensions	19”x 1.75”x 9” (483x44x229mm) 1RU
Weight, Net / Shipping	7.71 lbs (3.5 Kg) / 8.82 lb (4 Kg)
