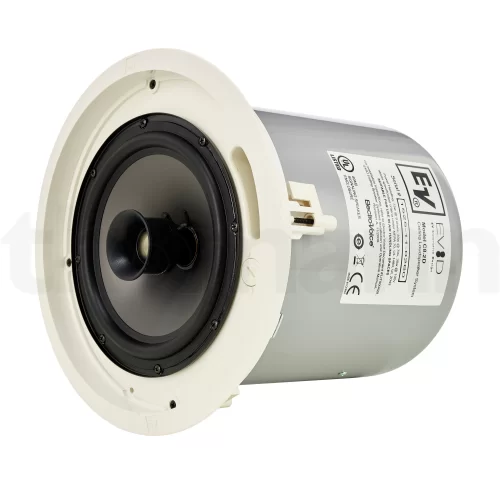

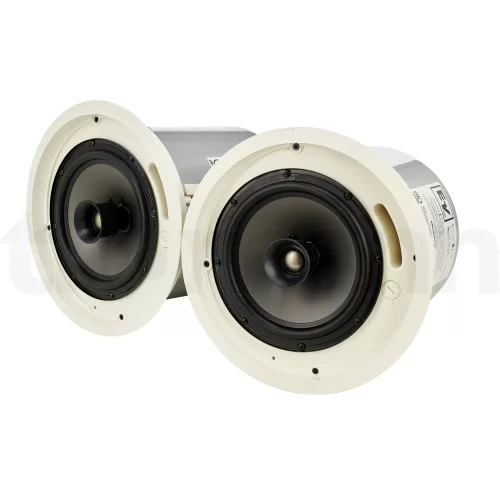

Electro-Voice EVID C8.2 Встраиваемая АС, 100 Вт. - 8 Ом., 3,75/7,5/15/30 Вт. - 100В., 8", Пара

Electro-Voice EVID C8.2 - Встраиваемая акустическая система

Характеристики:

• Freq. Response (-10 dB): 50 Hz - 20 kHz
• Coverage (Conical): 110°
• Power Handling: 75 W Cont. / 300 W Peak
• Sensitivity (SPL 1W/1m): 91 dB
• Max Calculated SPL: 110 dB Cont. / 116 dB Peak
• Impedance: 8 Ohms nominal (transformer bypass)
• Network: Network and transducers protected, 12 dB/oct 2.6 kHz
• LF Transducer: 8 in. (200 mm) Polypropylene cone
• HF Transducer: 1 in (25 mm) Ti Mylar laminate
• Transformer Taps: 70V: 1.88, 3.75, 7.5, 15 or 30w 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms

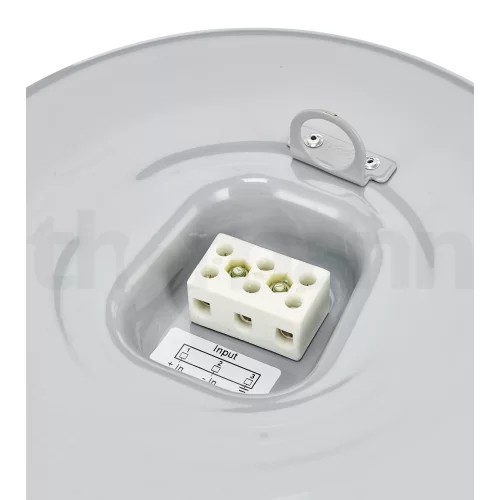

• Connectors: C8.2: Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire C8.2D: Fire-safety rated input block, 3 terminal barrier strip accepts 12 ga wire

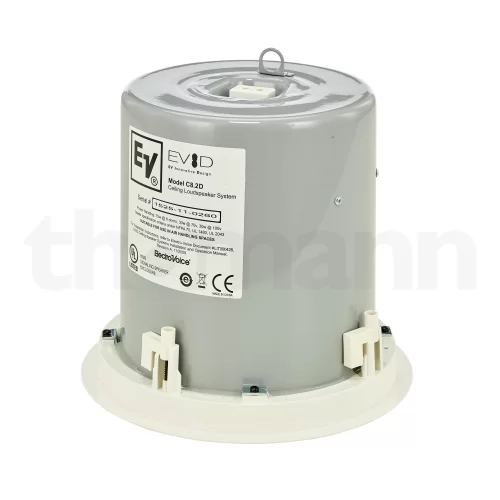

• Enclosure Material: Baffle- UL 94V-O rated ABS Backcan-Zinc plated steel

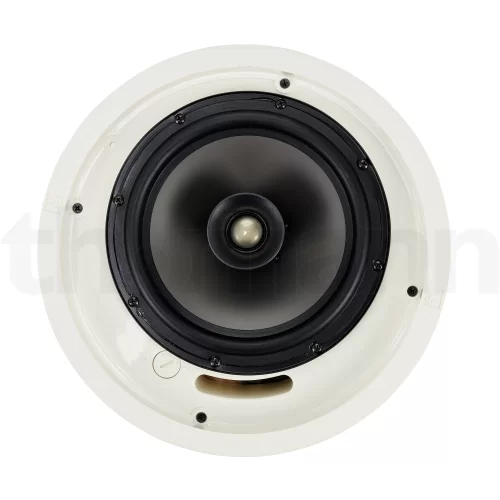

• Grille: Perforated powder coated steel with safety tether
• Support Hardware: Tile bridge, backing plate support, cutout template, paint shield
• Dim (H x Dia.): 10.0" x 10.6 (255mm x 270mm)
• Cutout Size: 10.75" (272mm)
• Net Weight (each): 11.0 lbs (5.0 kg)
• Shipping Weight (pair): 24.0 lbs (11.0 kg)
• Safety Agency Ratings: UL 1480 Safe for use in air handling spaces per UL 2043.
