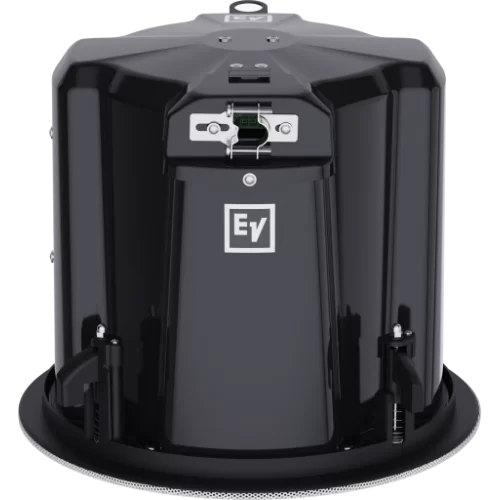

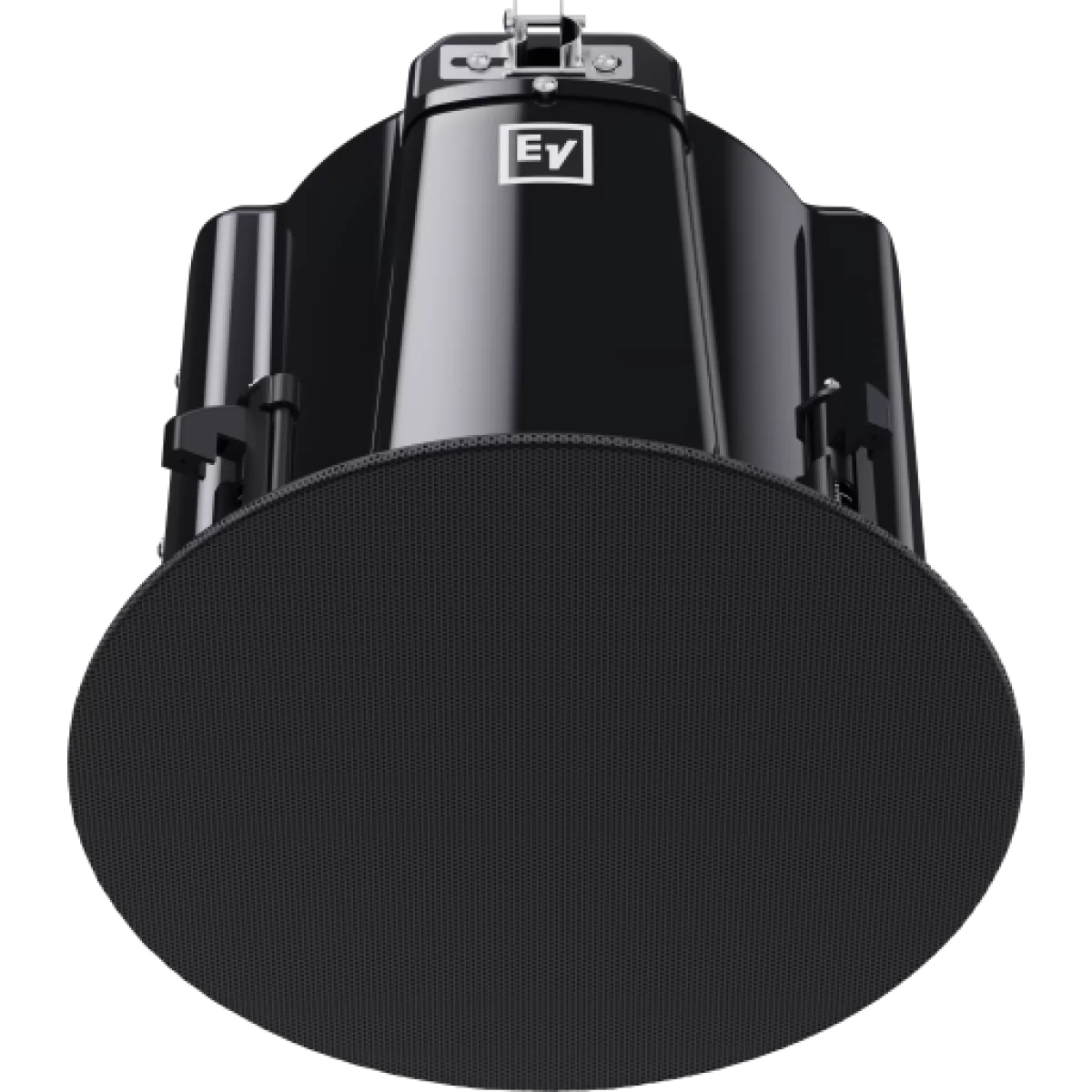

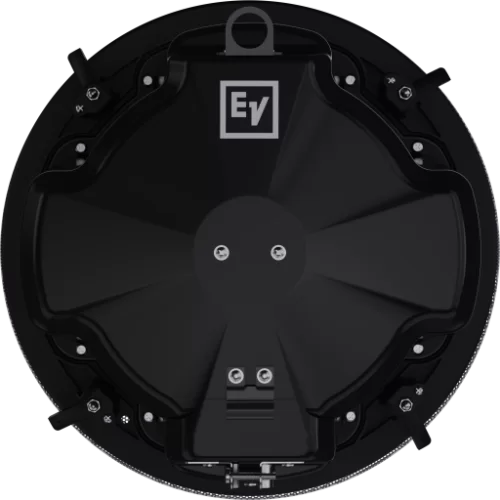

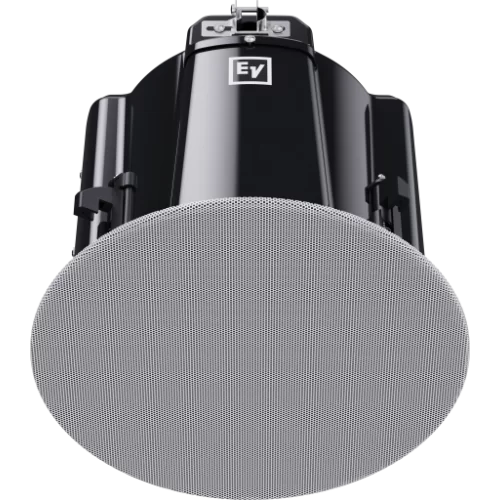

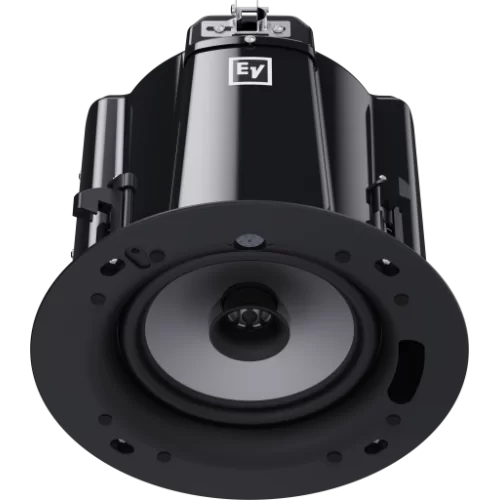

Electro-Voice EVID-C8.2-G2 Встраиваемая АС, 3,75/7,5/15/30/60 Вт. - 70/100В, 90 Вт. - 8Ом., 8", Пара

Electro-Voice EVID-C8.2-G2 - Встраиваемая акустическая система

Характеристики:

• Frequency range (-10 dB) (Hz) 1 50 Hz – 20,000 Hz
• Maximum SPL (continuous) (dB) 2 113 dB
• Maximum SPL (peak) (dB) 3 119 dB
• Sensitivity (1 W, 1 m) 4 92 dB SPL 1 W, 1 m
• Coverage angle conical (°) 90°
• Power handling (continuous) (W) 5 90 W
• Power handling (peak) (W) 5 360 W
• Nominal impedance (Ω) (Low Z) 8 Ω
• Recommended high pass (Hz) 6 50 Hz
• Transformer taps 70 V line (W) 15 W; 3.75 W; 7.5 W; 30 W; 60 W
• Transformer taps 100 V line (W) 15 W; 7.5 W; 30 W; 60 W
• LF transducer size (in) 8 in
• HF transducer size (in) 1 in
• Material Steel
• Grille material Powder coated steel

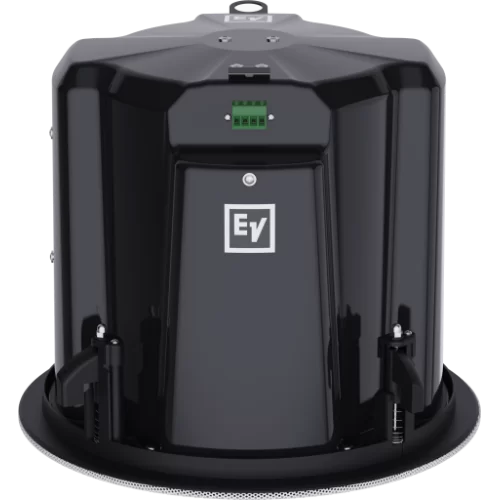

• Connector type 4-pin Euroblock
• Input + Pass through
• Wire size (AWG) 12AWG (maximum)
• Wire diameter (mm2) 3.3 mm2 (maximum)
• Color White; Customized colors
• Color (RAL) RAL 9003 Signal white
• Mounting cutout (in) 10.7 in
• Mounting cutout (mm) 272 mm
• Dimensions (Ø x D) (in) 11.8 in x 10 in
• Dimensions (Ø x D) (mm) 300 mm x 255 mm
• Mounting depth (in) 9,4 in
• Mounting depth (mm) 239 mm
• Ceiling thickness (in) 0,5 in - 1,5 in
• Ceiling thickness (mm) 12,5 mm - 38 mm
• Weight (kg) 5 kg
• Weight (lb) 11 lb
• Shipping weight (kg) 10 kg
• Shipping weight (lb) 22 lb
• IP rating 7 IP34
• Weatherization Indoor
• Operating temperature (°F) 32 °F – 104 °F
• Operating temperature (°C) 0 °C – 40 °C
