Electro-Voice EVID-C8.1S-G2 Встраиваемый сабвуфер, 3,75/7,5/15/30/60 Вт. - 70/100В, 180 Вт. - 8Ом., 8"

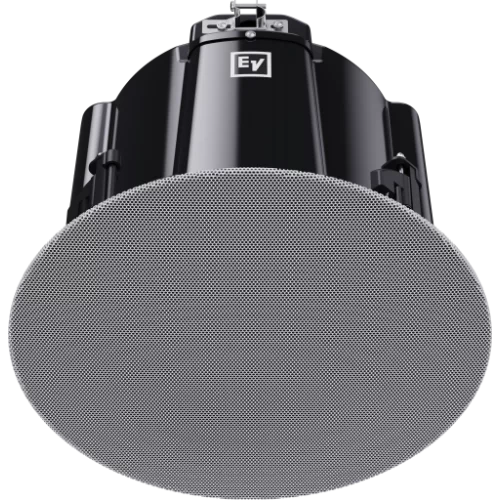

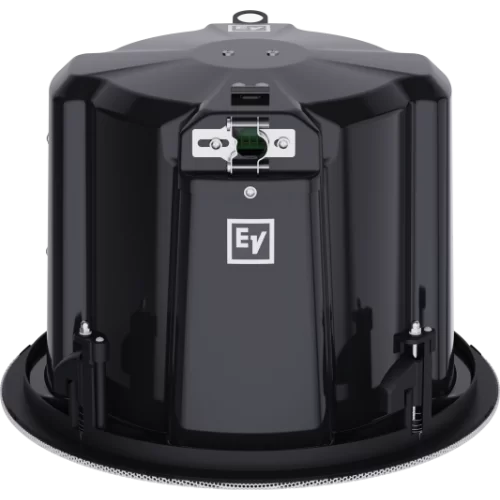

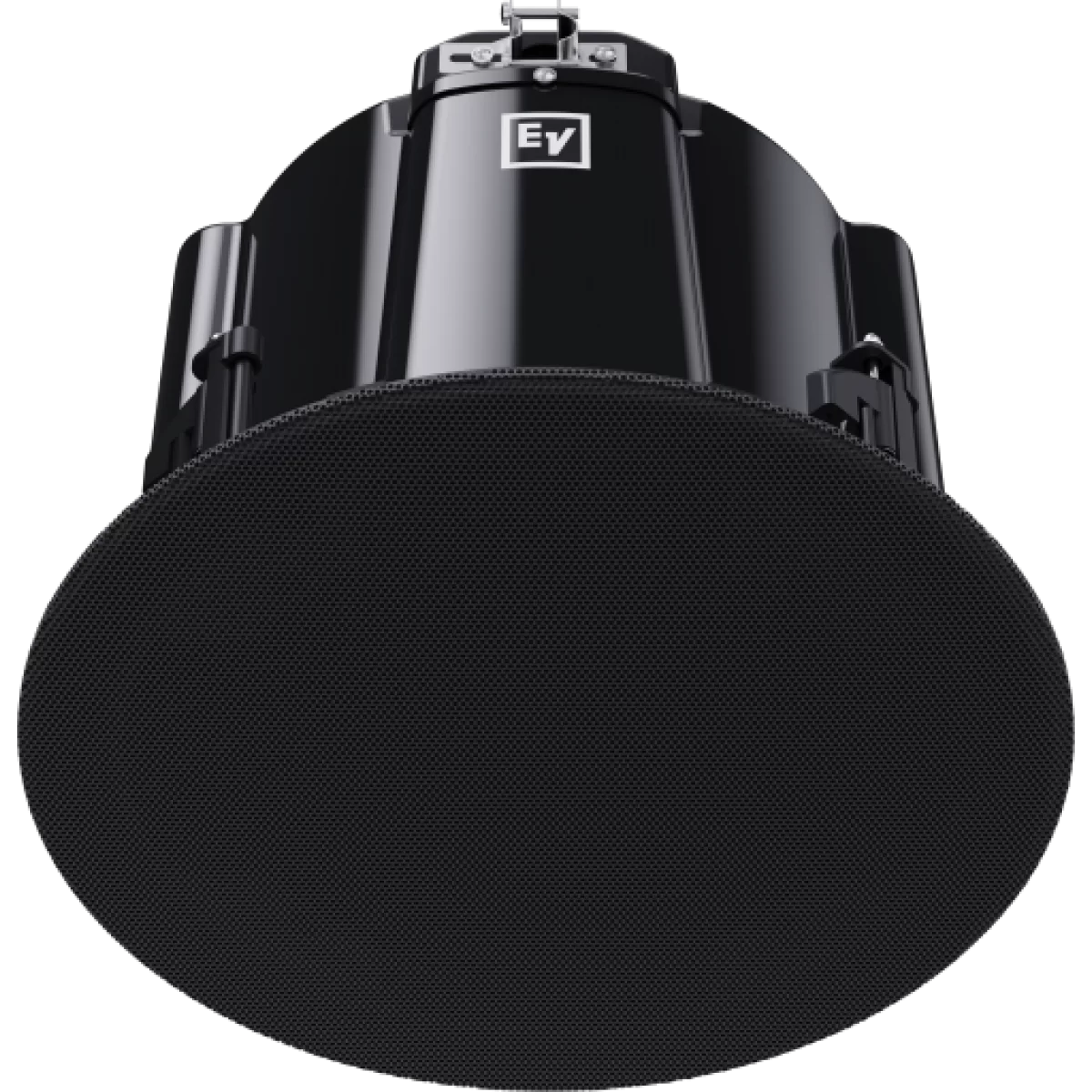

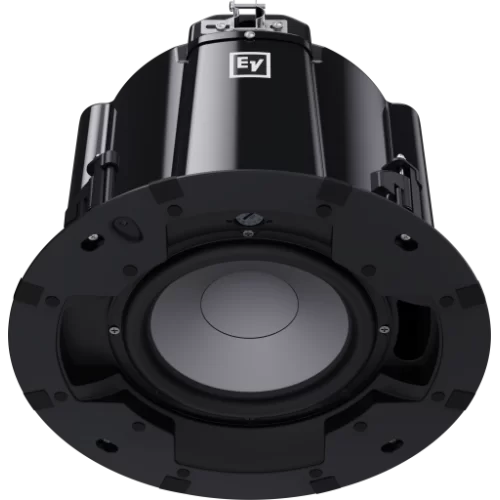

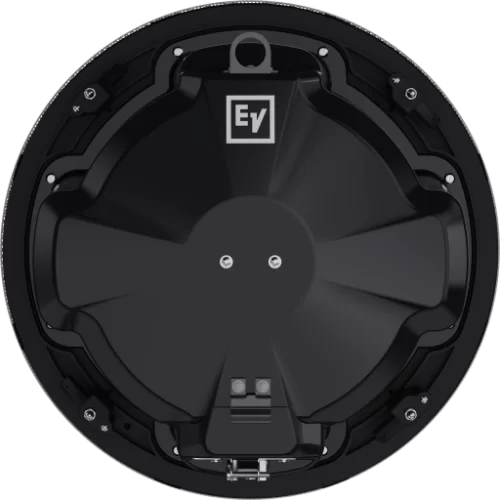

Electro-Voice EVID-C8.1S-G2 - Встраиваемый сабвуфер

Характеристики:

• Frequency range (-10 dB) (Hz) 1 50 Hz – 500 Hz
• Maximum SPL (continuous) (dB) 2 116 dB
• Maximum SPL (peak) (dB) 3 122 dB
• Sensitivity (1 W, 1 m) 4 92 dB SPL 1 W, 1 m
• Coverage angle conical (°) 360°
• Power handling (continuous) (W) 5 150 W
• Power handling (peak) (W) 5 600 W
• Nominal impedance (Ω) (Low Z) 8 Ω
• Transformer taps 70 V line (W) 15 W; 3.75 W; 7.5 W; 30 W; 60 W
• Transformer taps 100 V line (W) 15 W; 7.5 W; 30 W; 60 W
• LF transducer size (in) 8 in
• Material Steel
• Grille material Powder coated steel

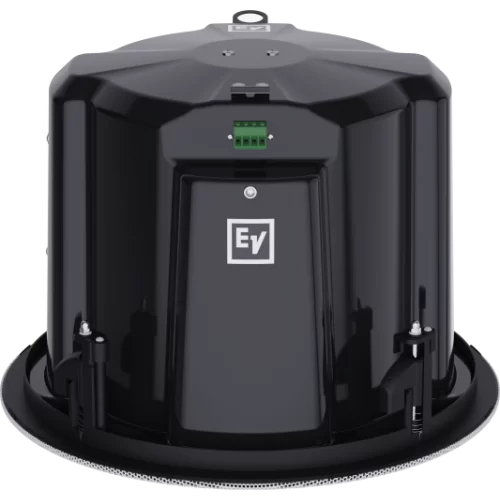

• Connector type 4-pin Euroblock
• Input + Pass through
• Wire size (AWG) 12AWG (maximum)
• Wire diameter (mm2) 3.3 mm2 (maximum)
• Color White; Customized colors
• Color (RAL) RAL 9003 Signal white
• Mounting cutout (in) 12.7 in
• Mounting cutout (mm) 323 mm
• Dimensions (Ø x D) (in) 13.4 in x 11.9 in
• Dimensions (Ø x D) (mm) 340 mm x 303 mm
• Mounting depth (in) 11,5 in
• Mounting depth (mm) 292 mm
• Ceiling thickness (in) 0,5 in - 1,5 in
• Ceiling thickness (mm) 12,5 mm - 38 mm
• Weight (kg) 6 kg
• Weight (lb) 13.2 lb
• Shipping weight (kg) 13.5 kg
• Shipping weight (lb) 30 lb
• IP rating 6 IP34
• Weatherization Indoor
• Operating temperature (°F) 32 °F – 104 °F
• Operating temperature (°C) 0 °C – 40 °C
