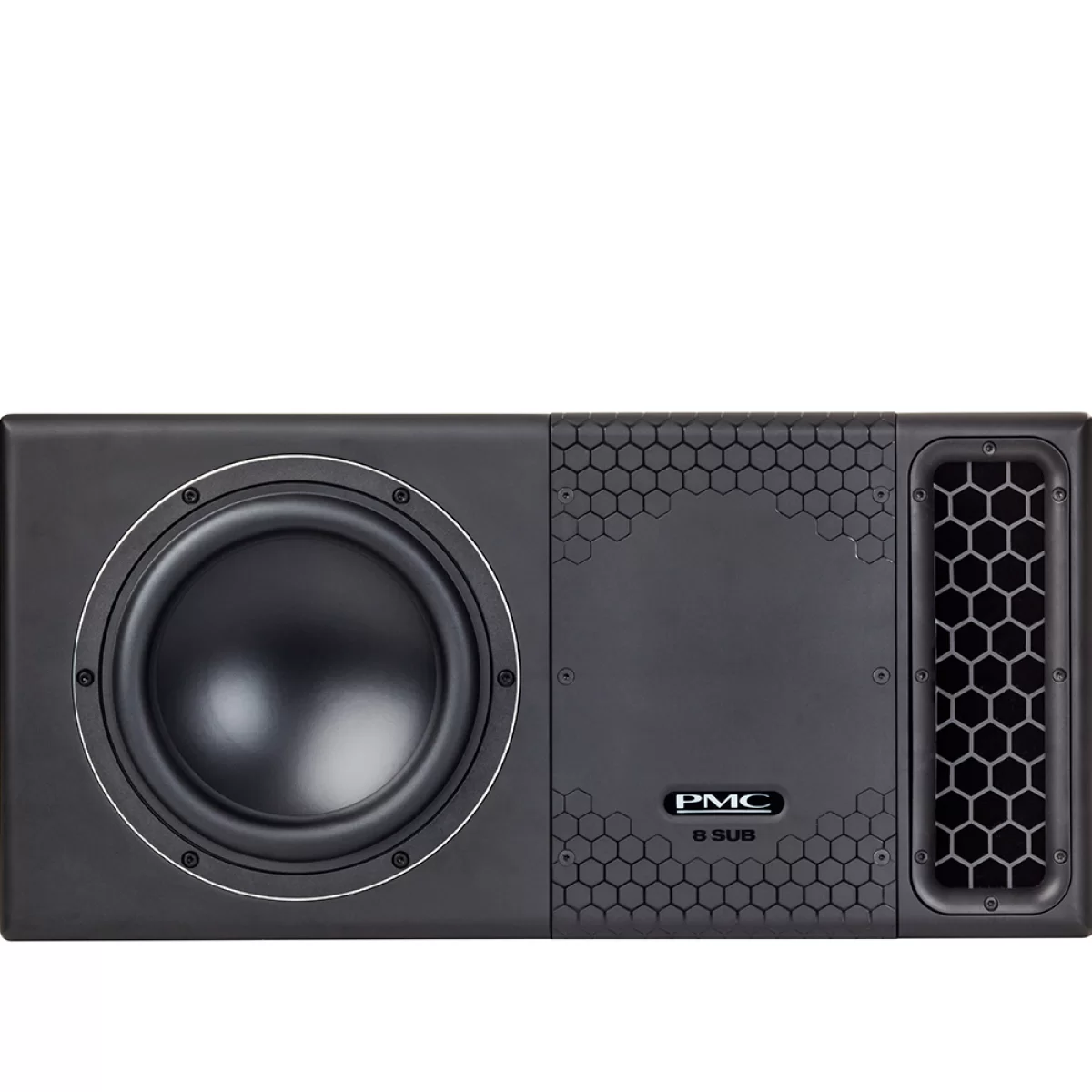

PMC 8 SUB Студийный сабвуфер, 300 Вт., 8"

PMC 8 SUB - Студийный сабвуфер

Active subwoofer with an 8-inch bass driver and ATL™ bass loadingThe PMC8 SUB is a true low-frequency reference monitor which extends the bass response of your speaker system, imparting more of our signature ultra-clean, ultra-fast low end to any setup. The PMC8 SUB can be used as a compact stand-alone subwoofer within conventional multichannel systems, or as an XBD cabinet, creating a full-range PMC6 XBD midfield monitor. When used in this way, the dedicated ‘XBD’ DSP mode marries the speakers and sub unit together, creating a coherent full-range system. Our subs are also perfectly suited to use in multi-channel and immersive systems, as our ATL™ bass-loading technology provides a gentler low-order LF roll-off than conventional ported cabinets, allowing a smoother, seamless integration between the height and surround channels and the sub. Featuring one custom eight-inch long-throw bass-driver, the PMC8 SUB is powered by a single 300W Class-D amplifier and controlled by the same powerful DSP engine as our other active models. DSP facilities include sophisticated room boundary equalisation options, parametric EQ, time delay, phase inversion, and the unique XBD mode, all configured via the loudspeaker’s rear panel or the browser-based SoundAlign™ software. Specifications

Характеристики:

• Type Active subwoofer with an 8-inch bass driver and ATL™ bass loading
• Drive Unit Complement LF PMC 200mm (8”) studio 8 driver
• Effective ATL™ Length 3m (9.8ft)
• Frequency Response 25Hz – 500Hz (- 3dB) (@1m full space, on-axis)
• Sensitivity +4dBu input signal = 98dB SPL @ 1m
• Max continuous SPL 109dB @1m
• (Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
• Max Peak SPL 121dB @1m
• (Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
• Input XLR switchable between analogue & digital AES3
• Analogue input – +20/+24dBu max. input level (selectable) – 22K ohm input impedance
• Digital input – 16/24-bit AES3 signal, left, right or left + right – 18 – 192kHz Sample Rate – 110 ohm input impedance
• Expansion card slot For future connectivity upgrades
• Output XLR digital AES3 (fixed 24-bit @ 96kHz)
• Network RJ45 for use with PMC SoundAlign web interface
• Features
• Level Trim (+/-10dB)
• High-pass/Low-pass filter (20 – 200Hz, 12dB/Oct)
• Delay (0 – 30mS)
• Phase (normal or inverted)
• LF & HF shelving filters (20Hz – 20kHz, +/- 10dB, Q 0.707)
• Parametric EQ (5 bands, 20Hz – 20kHz, +/- 10dB)
• User presets (3 + factory defaults)
• Latency 2.4mS
• Amplifier power 300Wrms
• Mains 100 – 240VAC auto-switching, 50-60Hz (IEC C14)
• Power consumption (idle) 25W
• Power consumption (max) 300W
• Cabinet dimensions
• H 266mm (10.5”)
• W 551mm (21.7”)
• D 440mm (17.3”)
• Weight 18.5kg (40.8lbs) each
