Marani DPA808AMT Автоматический матричный микшер, 8х8

Marani DPA808AMT Автоматический матричный микшер, 8х8

Name: Marani DPA808AMT Автоматический матричный микшер, 8х8
Brand: Marani
SKU: Marani DPA808AMT
Availability: InStock

Звоните

Наличие и цену товара уточняйте у менеджера

0 отзывов

Код товара:

24272

Производитель:

Marani

Весь представленный на сайте товар изготовлен заявленной компанией-производителем и поставляется в Россию официальным дистрибьютором а значит обеспечен гарантийным обслуживанием от авторизованного сервисного центра.

Marani DPA808AMT - Автоматический матричный микшер, 8х8.

Audio

Analog Input	8 electronically balanced
Analog Output	8 electronically balanced
Maximum Input Level	Line: +18dBu; Mic: -18dBu
Maximum Output Level	+18dBu
THD+N	0.005% at 1kHz 0dBu
S/N	>104dBA
Frequency Response	20Hz - 20kHz +/-1dB
AD & DA Converters	24bit

DSP & Processing

DSP Engine	MARANI® DSP, 24bit (data) x 96 bit (coeff.)
DSP Resolution	24×32 bit for filtering process 96 bits resolution on intermediate computation results
Input Equalization	3-band parametric selected as Peaking or Low/High Shelving with variable Q per input channel Low/High Pass 1St order filter per input channel
Output Equalization	5-band parametric EQ selected as Peaking or Low/High Shelving with variable Q per output channel
Filter Gain	From -12dBu up to +12dBu by 0.5dBu resolution steps
Center Frequency	Selectable with a 1/24th of octave resolution step from 20Hz up to 20kHz
Filter Q/BW	Q from 0.4 up to 10 by 0.1 resolution steps
Crossover Section HPF/LPF	Butterworth 6/12/18/24dB per octave Bessel, Linkwitz-Riley and custom 12/24dB per octave Filter resolution 1/24th of octave
RMS Compressor and Peak Limiter	Threshold from 18dBu up to -30dBu Attack time from 5ms up to 200ms (1ms resolution up to 20ms, 10ms resolution up to 100ms and 20ms resolution up to 200ms) Release time from 0.1 sec up to 3 sec (0.1sec resolution) Ratio from 1:1 to 32:1 (Compressor only) Adjustable Soft or Hard Knee (Compressor only)
Delay	848,998 ms 21us increment/decrement steps per channel
Feedback Eliminator	Pitch Shifting algorithm only for Mic input channels
Automixing Functions	NOM attenuation, Gain Sharing algorithm and Priority Ducking processing

General

Device Presets	6 User Presets + 4 by using S1-S4 digital input ports

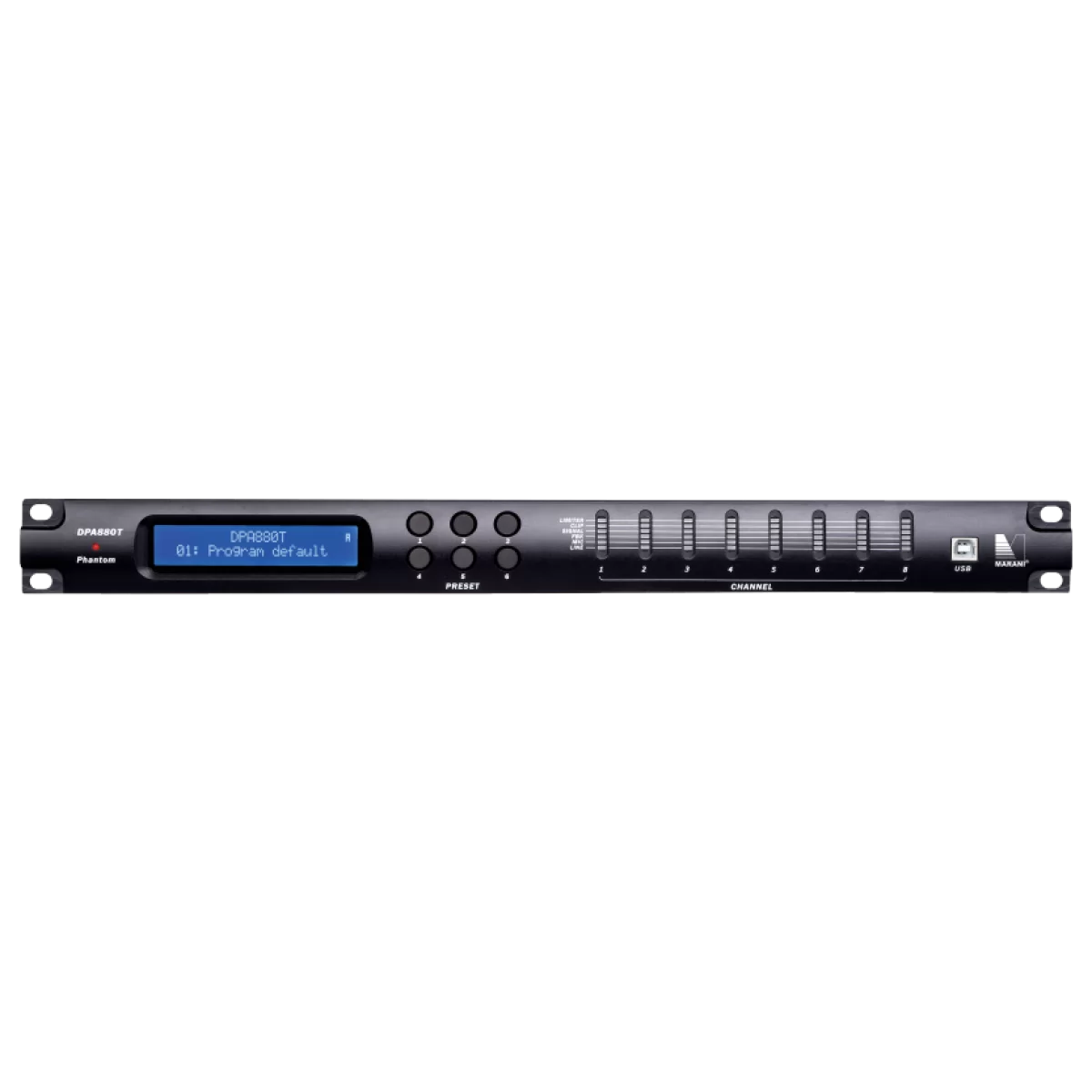

Front Panel	2x24 character LCD display with white/blue LED backlight 6-LED status indicators per channel (Line, Mic, FBK, Signal, Clip, Limiter) 1-LED indicator Phantom Power 6 x preset selection push button switch USB type B connector

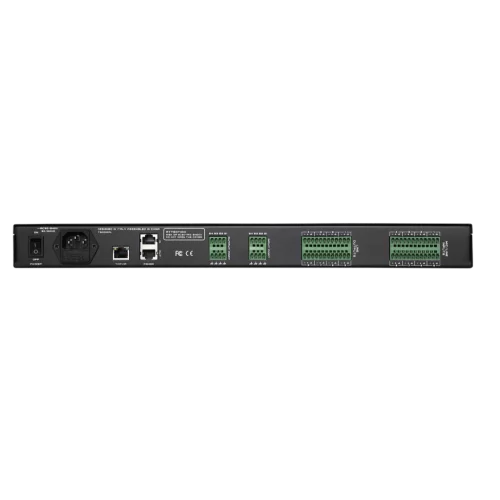

Rear Panel	2 x 12 pin Phoenix connector (Mic/Line Inputs) 2 x 12 pin Phoenix connector (Line Outputs) 2 x 4 pin Phoenix connector (S1-S4 digital input ports - TTL level 0-5V) 2 x 4 pin Phoenix connector (S1-S4 digital output ports - TTL level 0-5V) 2 x RJ45 for RS485 In/Out connection 1 x RJ45 connector with activity LEDs for Ethernet connection (10/100 TCP-IP) IEC C13 16A connector; Power on /off switch
Optional Device	Marani® CP4 Wall Panel control
Main AC	90-240VAC (50/60Hz) – 40W
Dimensions	19”x 1.75”x 9” (483x44x229mm) 1RU
Weight, Net / Shipping	7.71 lbs (3.5 Kg) / 8.82 lb (4 Kg)
