Relacart CS-360M Центральное устройство конференц-системы

Relacart CS-360M - Центральное устройство конференц-системы.

Характеристики:

• Chassis specifications: EIA Standard 1U
• Supply voltage: 90-264V AC or 127-370V AC，47-63Hz
• Static power consumption:6WRated power: 75W/24VMaximum power: 100W/24V
• XLR balances carnon maximum output level: 14.6dBu
• Maximum output level of the 6.35mm balance socket: 14.6dBu
• RCA lotus socket maximum output level: 9.8 dBu
• RCA lotus socket maximum input level: 3.2 dBu

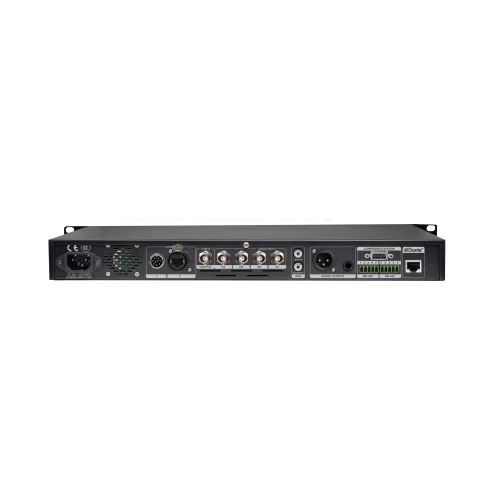

• Conference unit extension: Anti drop 9P aviation plug x 1、Network port (female) x1
• Video input port: BNC x 4
• Video output port: BNC x 1
• Video interface impedance: 75Ω
• 9 pin serial port control interface: DB9 Female plug x 1
• Rs-232 control protocol interface：5P Phoenix terminal X 1
• Rs-422 control protocol interface：5P Phoenix terminal X 1
• Dante interface: Cat5 typeB network port
• Audio output: XLRM x 1, 6.35mm jack x 1, RCA Lotus x 1
• Audio input: RCA Lotus x 1

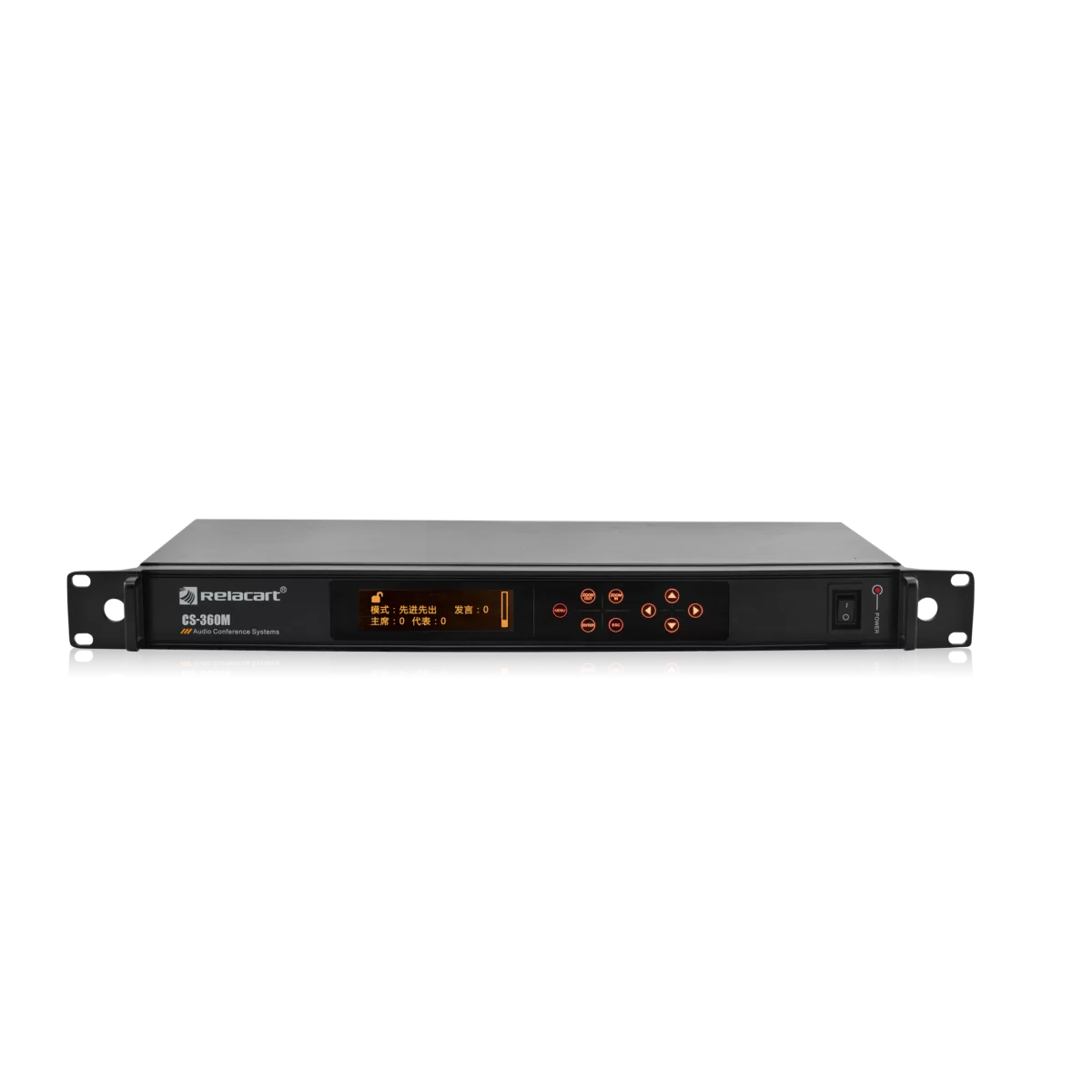

• Screen type: OLED
• Key mode: touch style
• Weight: about 2.3kg
• Dimension (mm): 410 (W) x43 (H) x206 (D)
