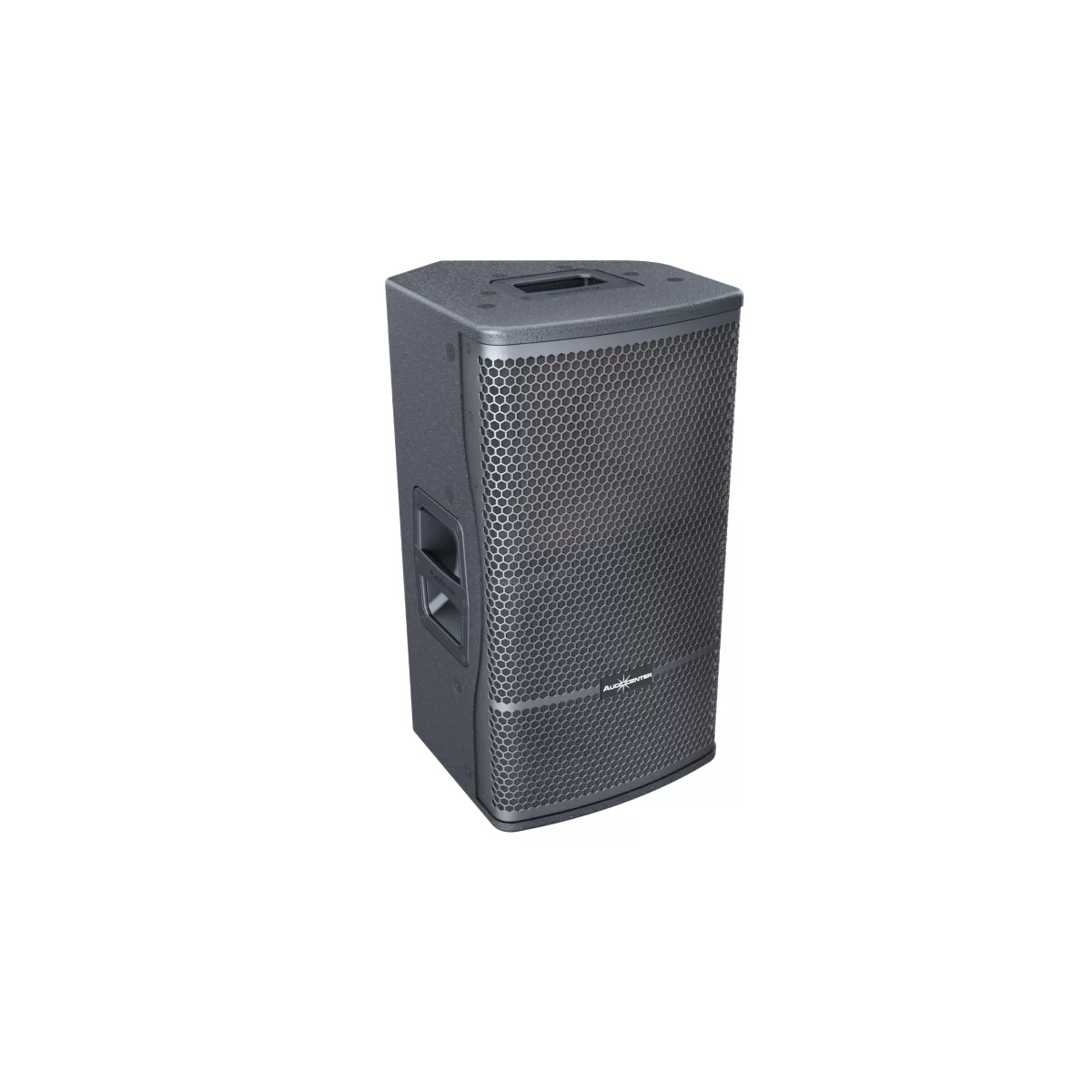

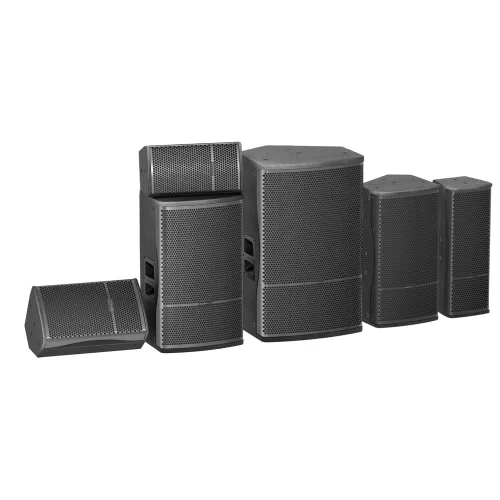

Audiocenter PF12+ MKII 90 Пассивная АС, 400 Вт., 12"

Type

Passive crossover full range speaker

Frequency Response

(-6dB anechoic chamber)

53Hz-20KHz

Rated Power(AES)

400W

Maximum SPL(Continuous/Peak)

126dB/132dB

PF12+ MKII90 Coverage Angle(Symmetrical)

90°×40°

PF12+ MKII60 Coverage Angle(Symmetrical)

60°×40°

LF Driver

Customized driver, 3” voice coil, 400W(AES)

HF Driver

Customized driver, 1.4” exit, 1.75” voice coil, 70W(AES)

Crossover Point

1500Hz

Impedance

8Ω(+1, -1)

1 Way Amplifier

2pcs maximum, 4Ω

Hanging Hardwares

M8 screw

Pole Mount

Base hole Φ35mm, 10°/ 0°adjustable

Input Connectors

2×Speaker connector

Cabinet Material

Russian birch plywood CNC made

Cabinet Color

Black is standard and default color.Consult with sales team for the other customized colors

Dimension(W×H×D)

354×605×323mm

Net Weight

23.0Kg
