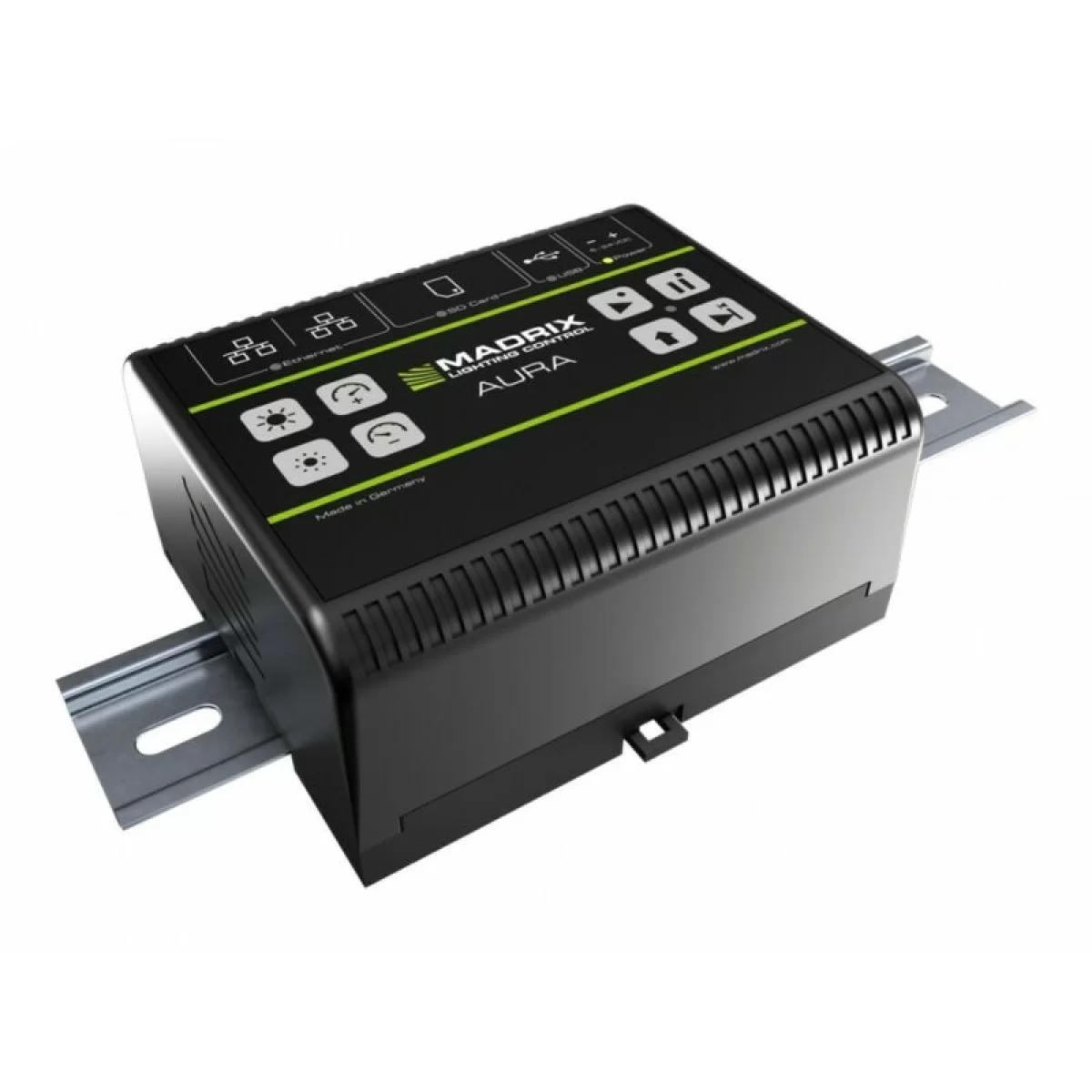

Madrix Aura 8 Рекордер DMX-потоков

Madrix Aura 8 - Центральный автономный контроллер для простой записи и крупномасштабного отображения световых пикселей на объектах.

Он переопределяет возможности компактного блока управления с исключительной производительностью.

Технические характеристики:

• Supply Of Power: DC 5 V – 24 V; over A) 2-pin, pluggable screw terminal or B) 5 V USB
• Power Consumption: < 1.5 W (300 mA) during normal operation (500 mA max. fused)
• Network Protocols: Art-Net (I, II, 3, 4, incl.
• RDM Role: Acts on commands and replies to requests with data via ArtRdm (RDM Responder)
• Output: 32x 512 DMX channels output over Ethernet network
• Recording Input: 32x 512 DMX channels input over Ethernet network
• Remote-Control Input: 8x 512 DMX channels received over Ethernet network
• SD-Card Slot: Supports SD, SDHC, and SDXC cards (Tested up to 64 GB)
• Ethernet: 2x RJ45, Auto MDI-X, daisy-chain support, 10/100/1000 MBit/s
• Ethernet Switch: Lookup Table (ALU) for 4096 unicast MAC addresses
• USB: 1x port, USB 2.0, type-B female socket
• Handling: 8 control buttons, 6 status LEDs (+ 4 network status LEDs)
• Case: Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting

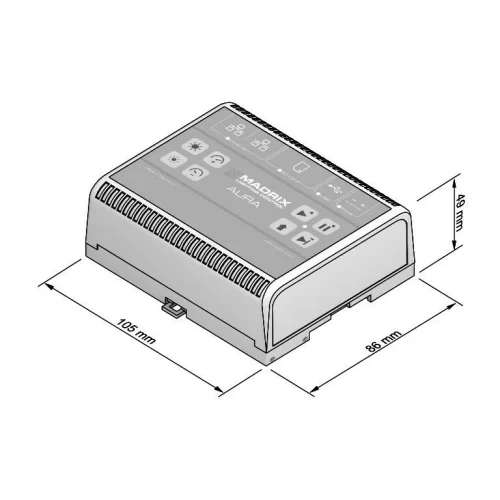

• Dimensions: 86 mm x 105 mm x 49 mm (Length x Width x Height)
• Weight: 148 g | 154 g incl. screw terminal, SD card, and wall mounts
• Temperature Range: -10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)
• Relative Humidity: 5 % to 80 %, non-condensing (Operating / Storage)
• IP Rating: IP20
• Certificates: CE, EAC, FCC, RoHS
