Neutrik NC4FD-L-1 Панельный разъем XLR female 4 контакта

Neutrik NC4FD-L-1 - Панельный разъем XLR female 4 контакта

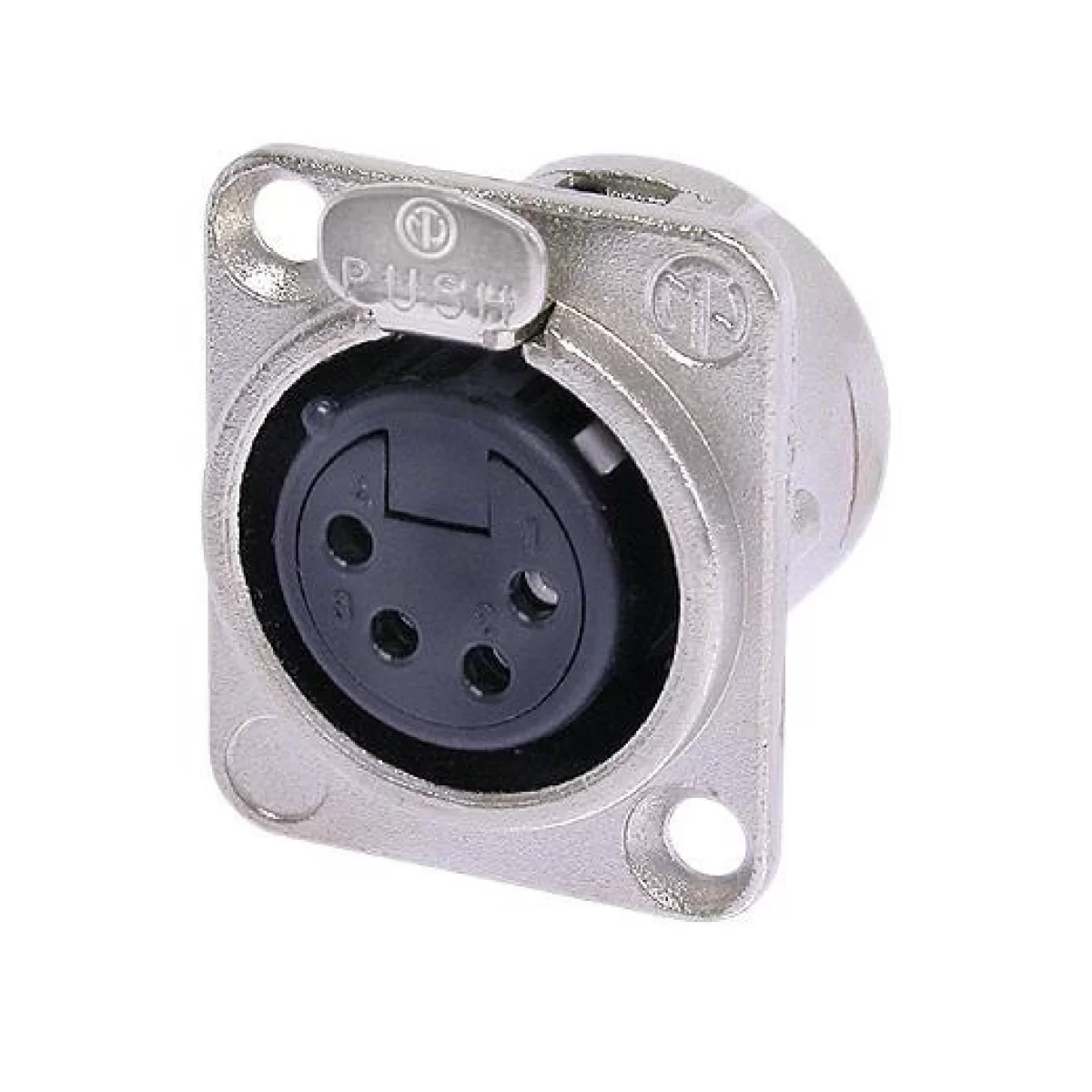

The NC4FDL1 is a 4-pole Female XLR Receptacle with solder cups, nickel housing, latch locking device and silver over nickel plated brass contacts. This DL series panel mount XLR connector has polyamide insert, nickel-plated zinc die-cast shell and steel Ck67 locking element.

• Robust D metal shell
• Metal shell offer RF protection
• Standardized D-size 24mm panel cut-out
• UL94HB Flammability rating
• IP40 Protection rating
• Complies with IEC 61076-2-103 standard
• Solderability complies with IEC 68-2-20 standard
• <=5mR Contact resistance
• >10GR Insulation resistance
• 10A Current rating per contact
• <50V Voltage rating
• -30 to +80°C Temperature range
